X58/23 charger feed-in socket wiring diagram and pin configuration for USA/Canada EV charging connector.

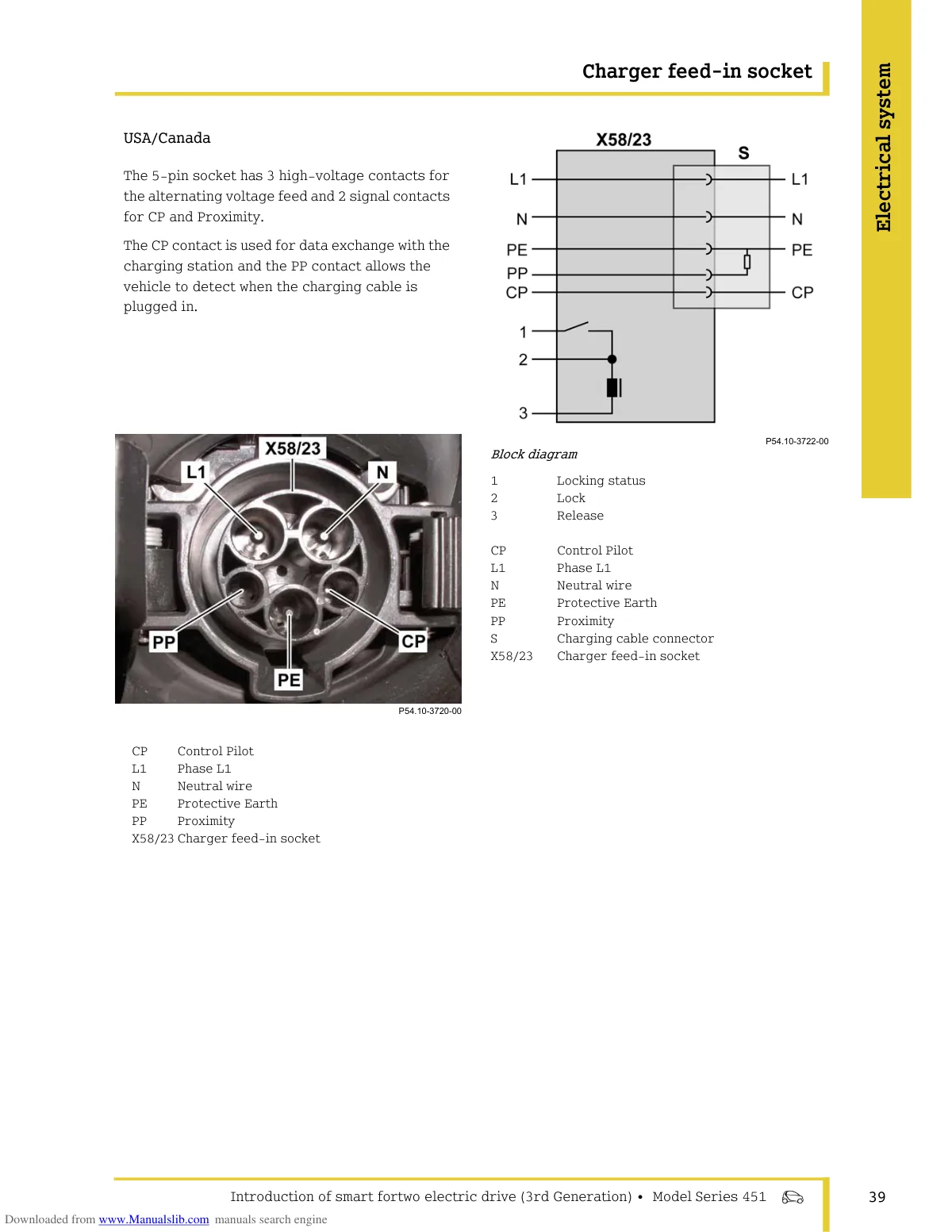

Five-pin charging socket diagram showing L1, N, PE, PP, CP contacts with block diagram and physical socket photo.
