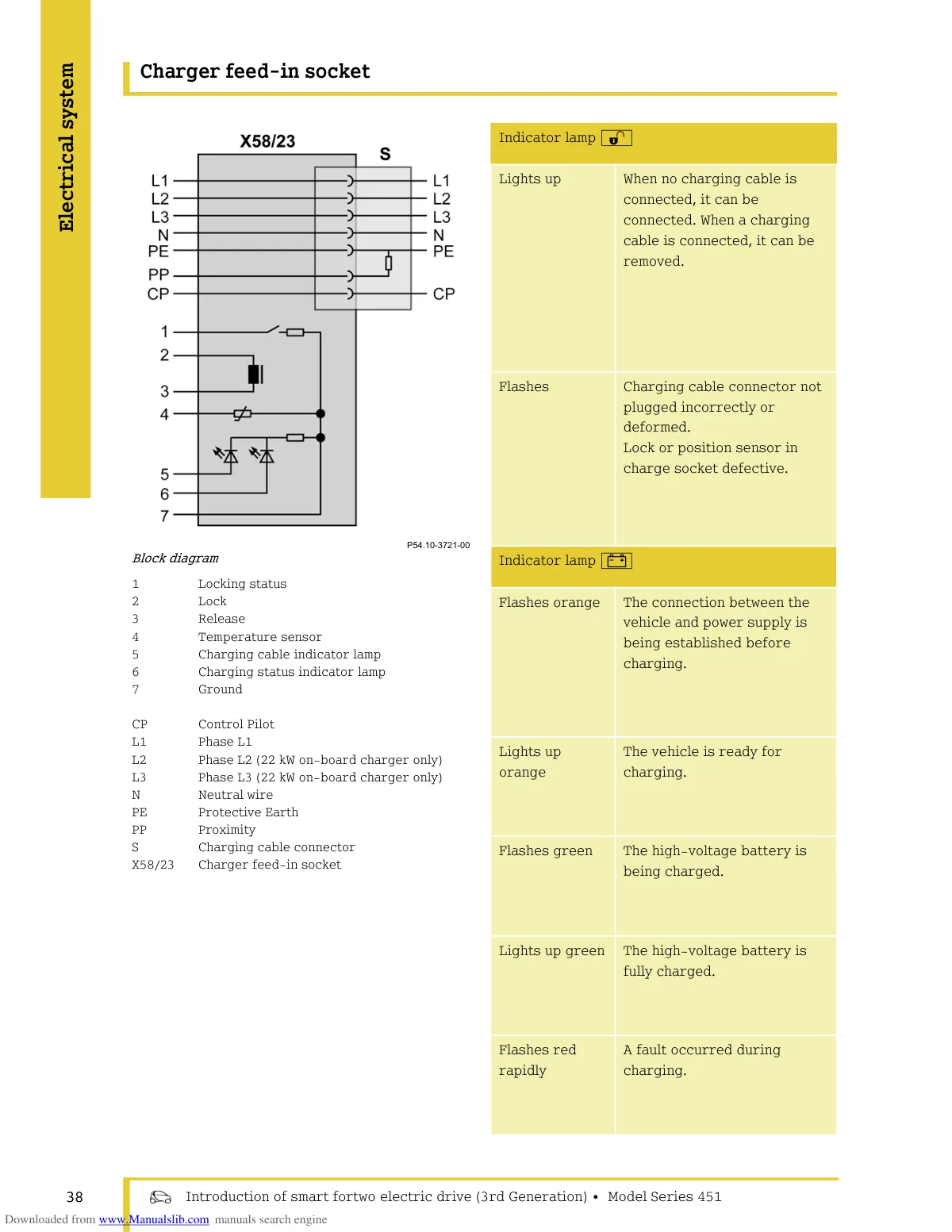

Charger feed-in socket X58/23 block diagram and indicator lamp status reference for smart fortwo 451 EV charging system.

Electrical schematic of charger socket with pin layout, locking mechanism, and charging status indicator lamp meanings.
