TIREFIT emergency tyre sealant kit procedures for pressure adjustment and troubleshooting guidance page 176.

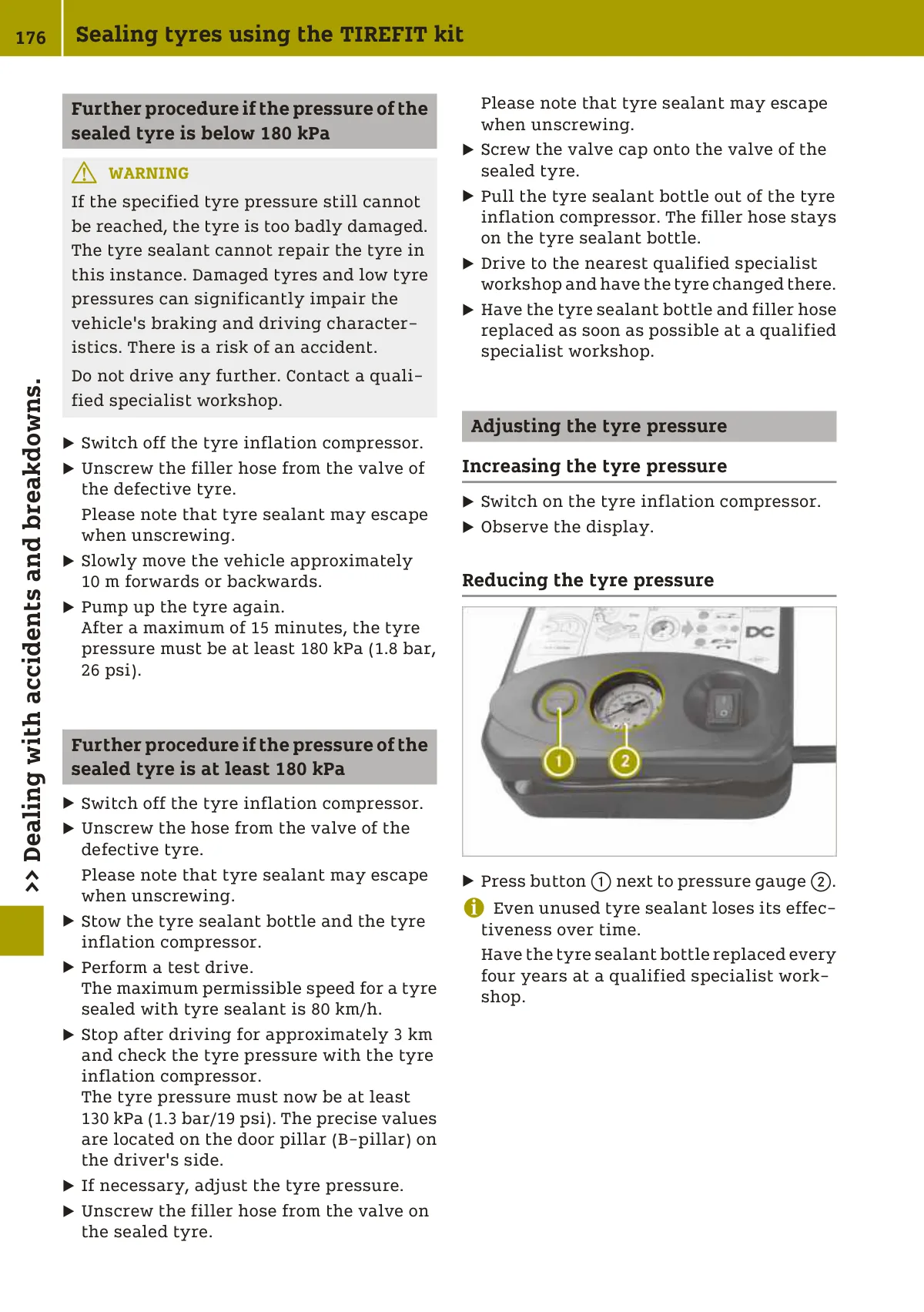

Instructions for sealing tyres with TIREFIT kit, pressure adjustment procedures, and warning about tyre sealant limitations.
