TIREFIT emergency tire sealant kit components and procedure for sealing punctured tires on Smart vehicles.

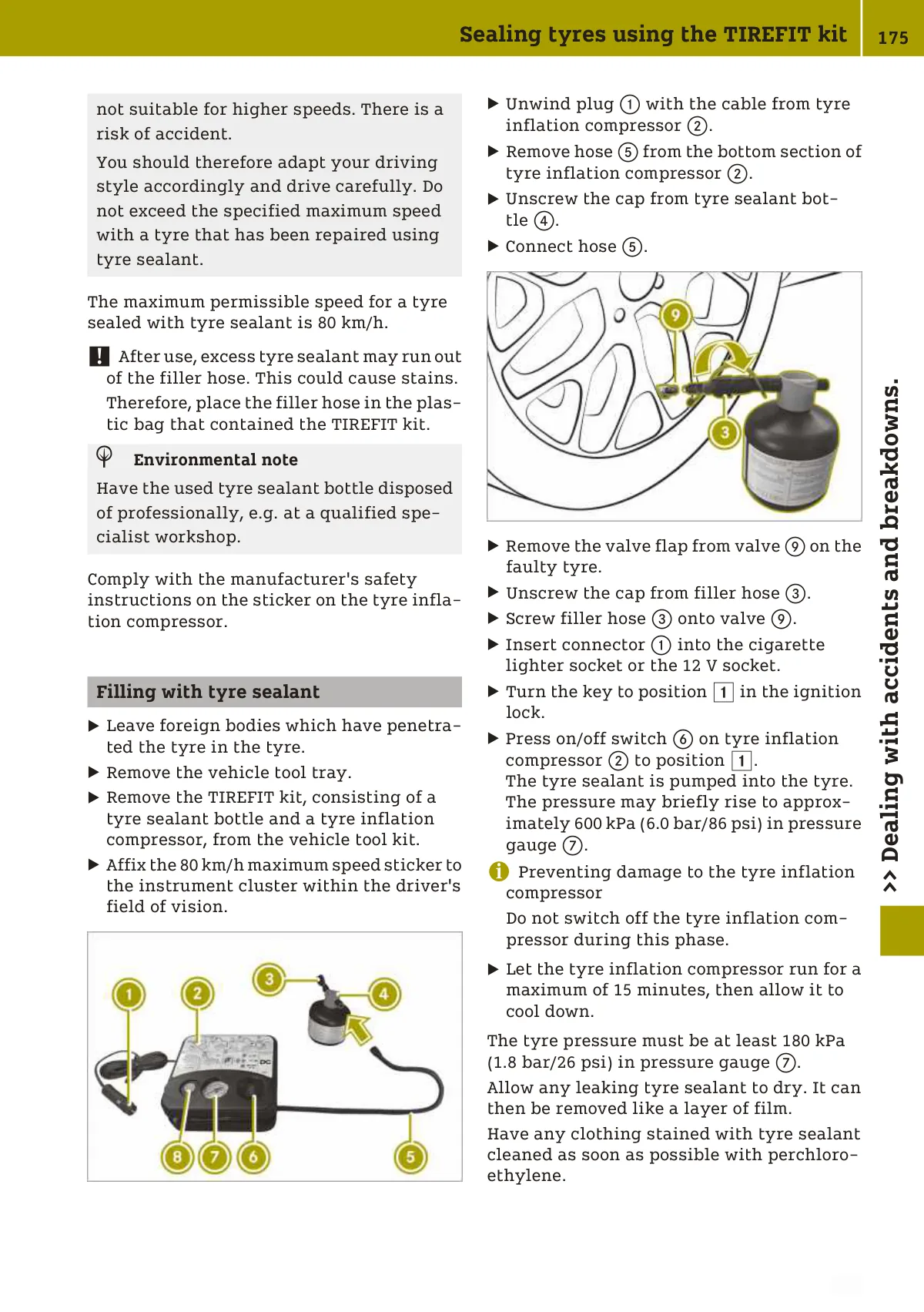

Diagram showing TIREFIT kit parts numbered 1-9 and step-by-step tire sealing instructions with safety warnings.
