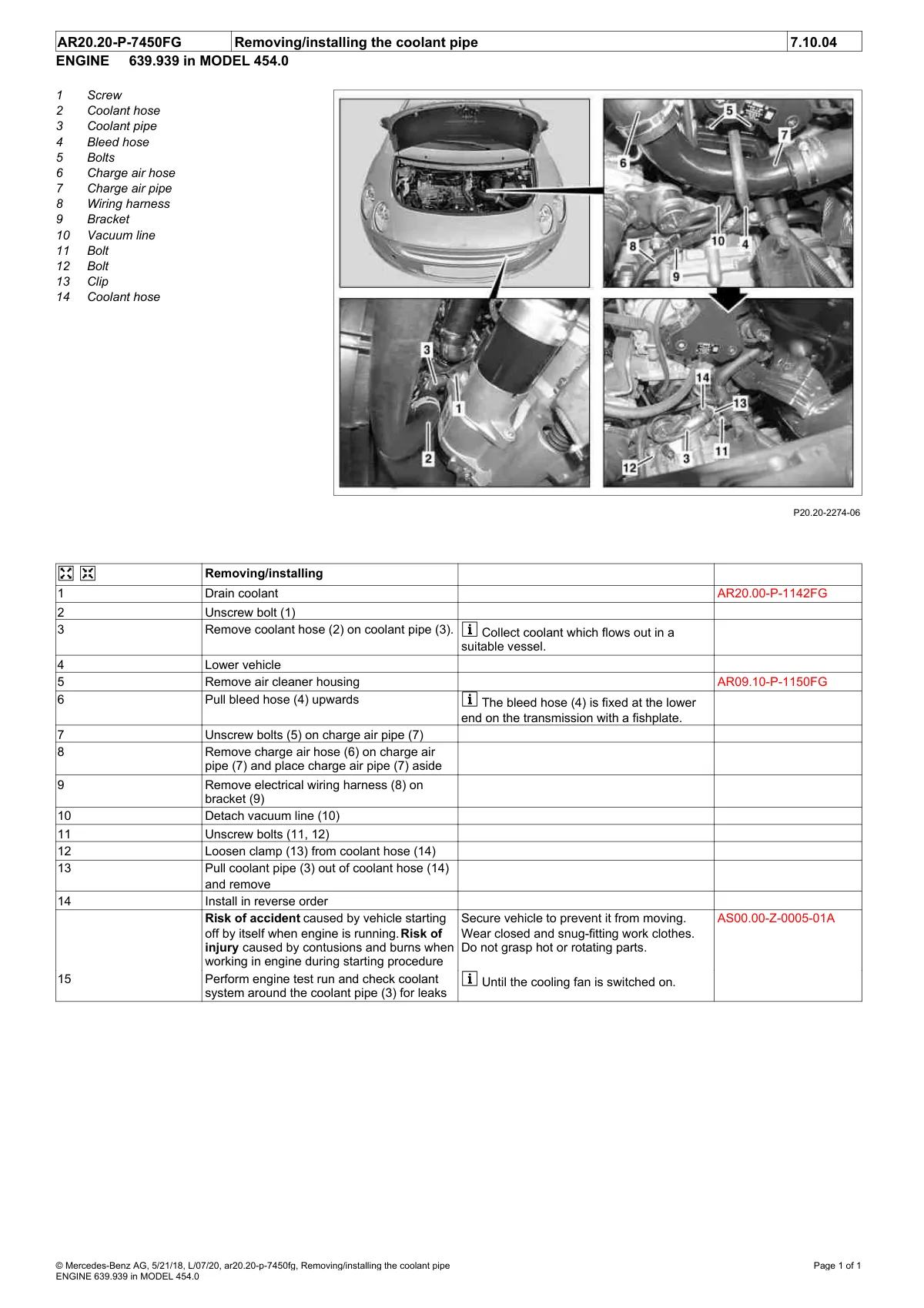

Removing and installing coolant pipe on 454.0 engine with numbered callout diagrams and step-by-step procedure table.

Engine bay photos showing coolant pipe removal steps with numbered callouts 1-14 and detailed service instructions.
