Radiator removal and installation procedure for Smart Fortwo 454 with engines 122.9, 134.9, 135.9 including condenser and coolant hose locations.

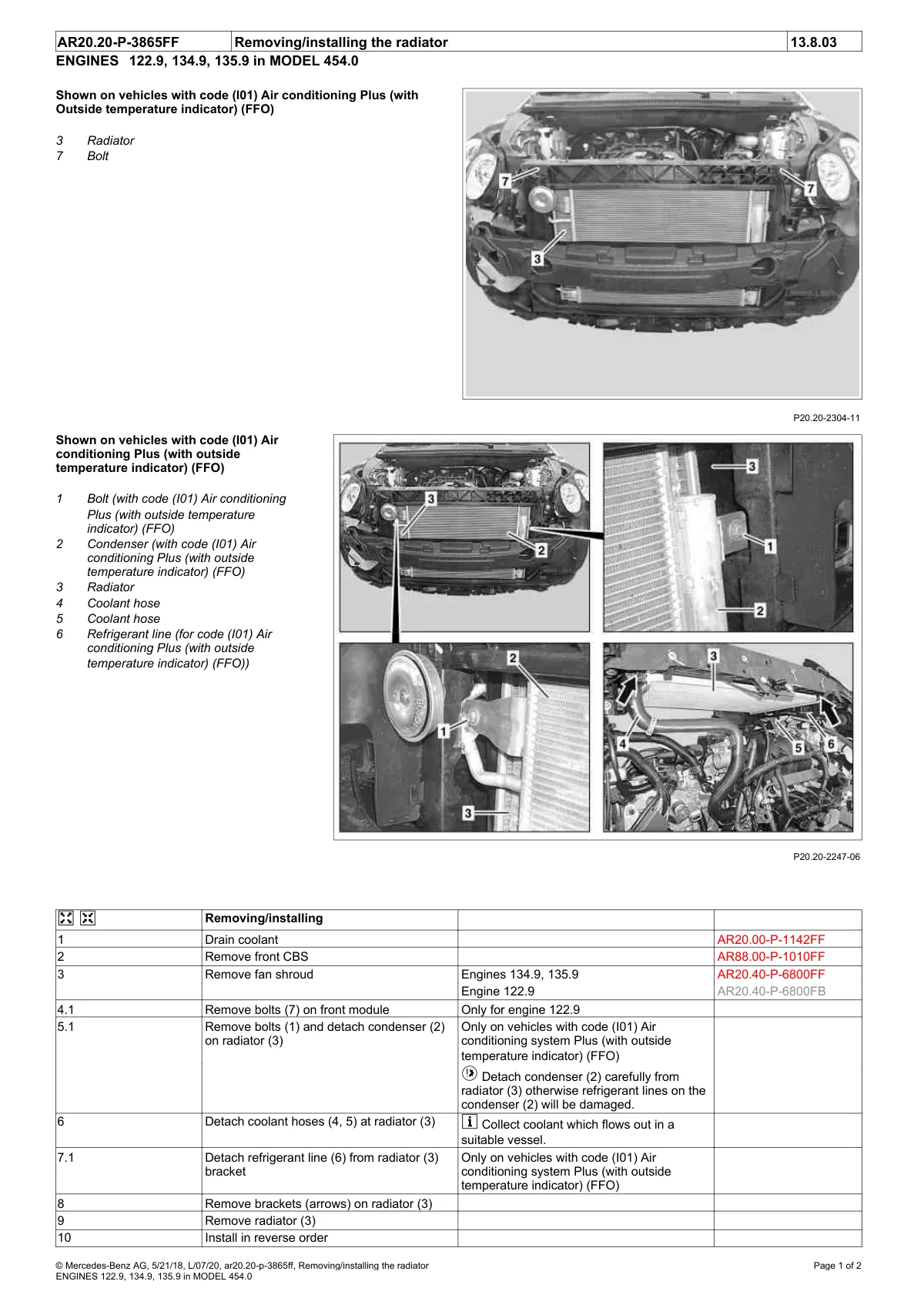

Engine bay view showing radiator, condenser, and coolant hoses with numbered callouts for disassembly steps.
