Smart fortwo 451 cooling system circuit diagram showing radiator, expansion reservoir, thermostat, coolant pump, and temperature sensor locations.

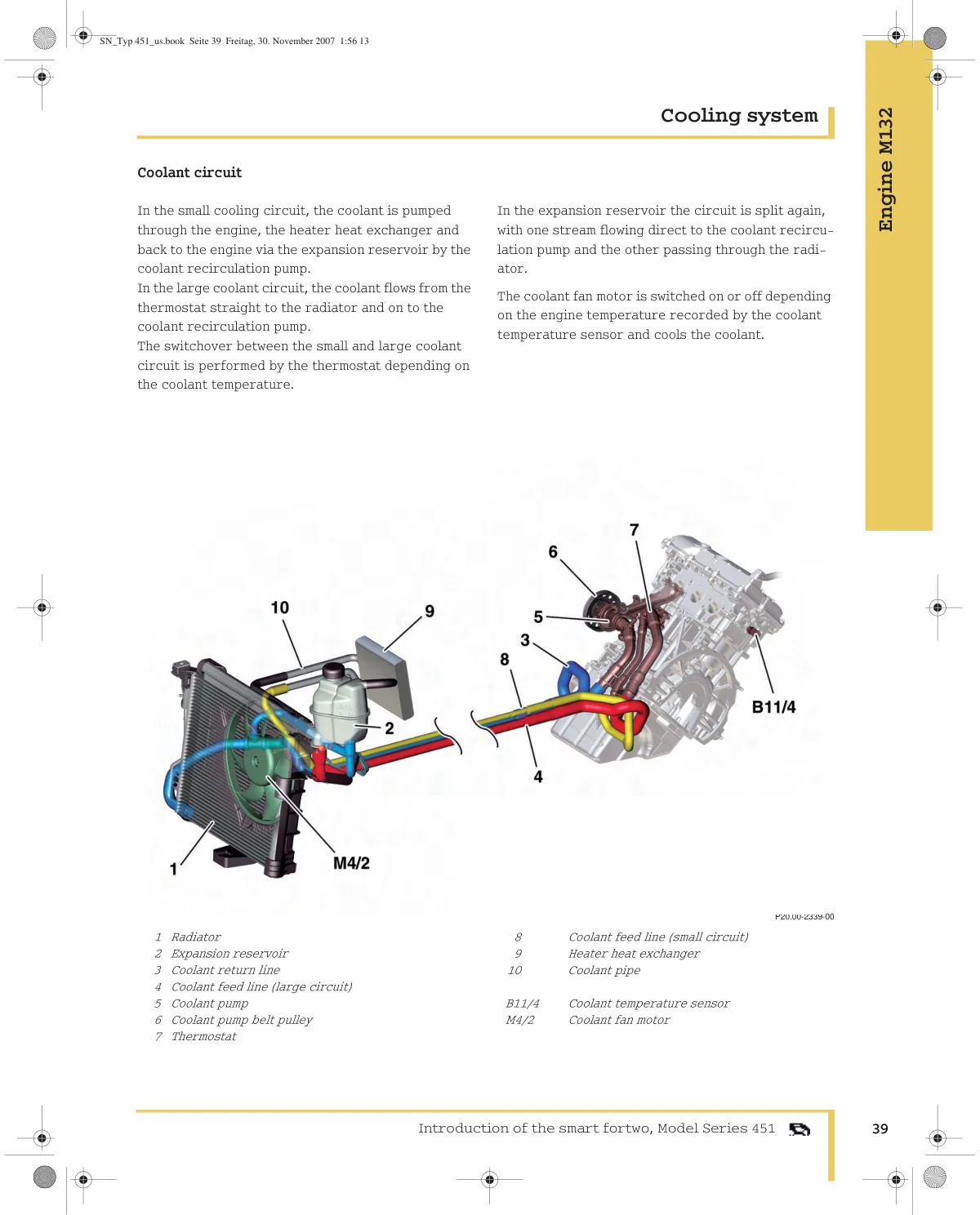

Cooling system schematic with numbered components: radiator, expansion reservoir, coolant pump, thermostat, and heater exchanger.
