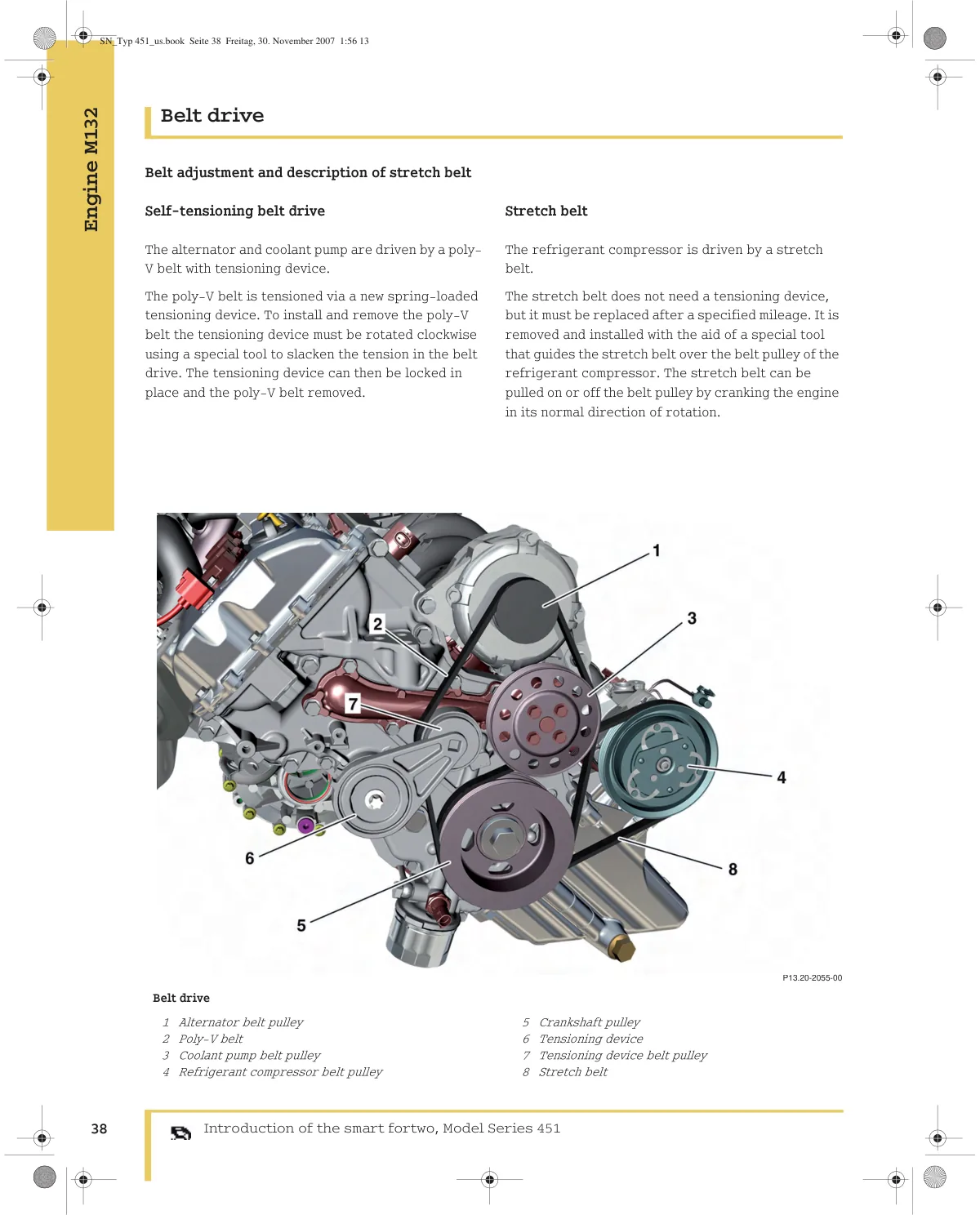

Belt drive system with eight labeled components: alternator pulley, poly-V belt, coolant pump pulley, refrigerant compressor pulley, crankshaft pulley, tensioning device, tensioning device belt, and stretch belt.

Engine block front view showing belt drive pulleys and tensioning components with numbered callouts 1-8.
