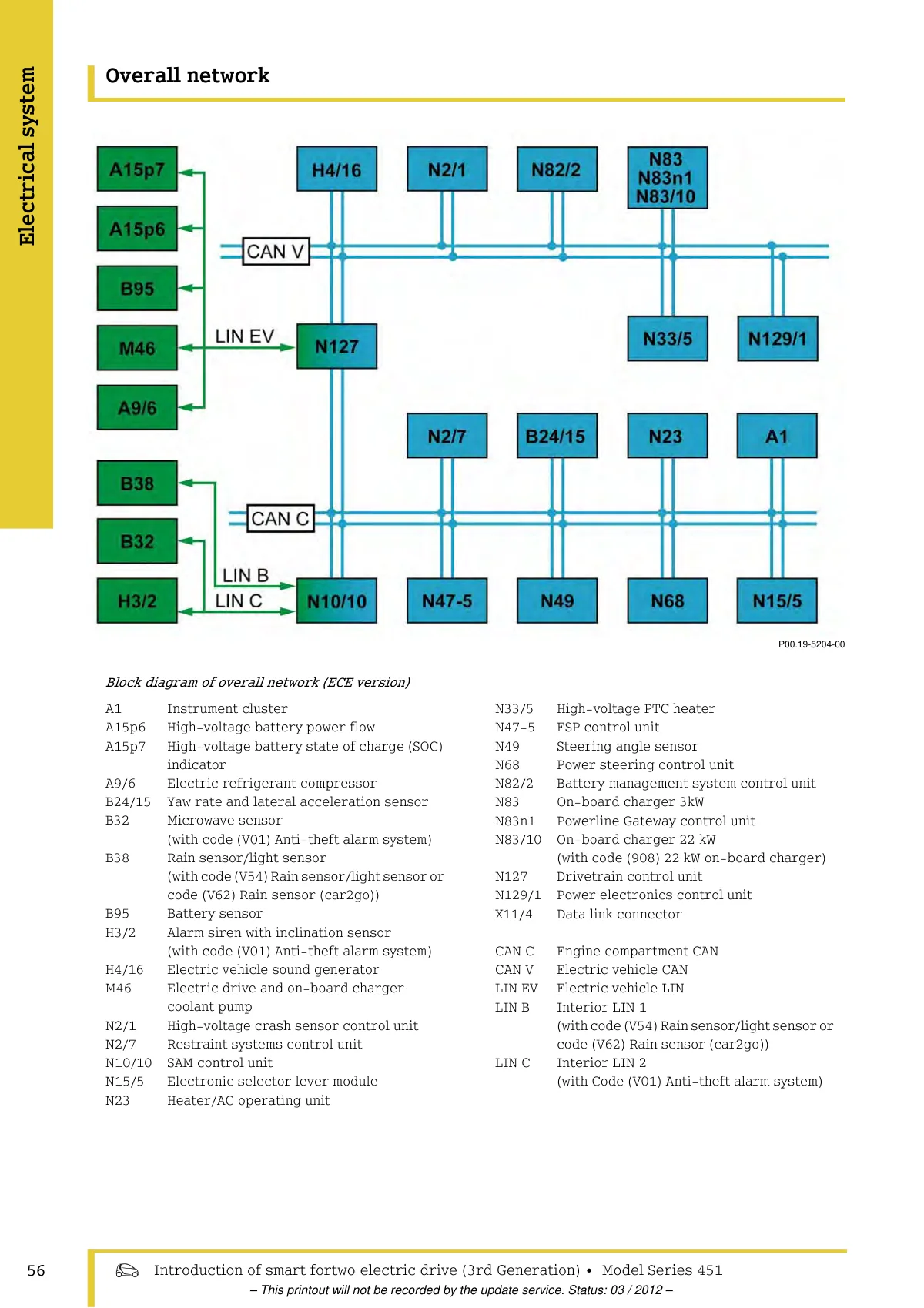

Overall network block diagram showing CAN V, CAN C, and LIN communication buses connecting ECUs and sensors in smart fortwo electric drive 451.
