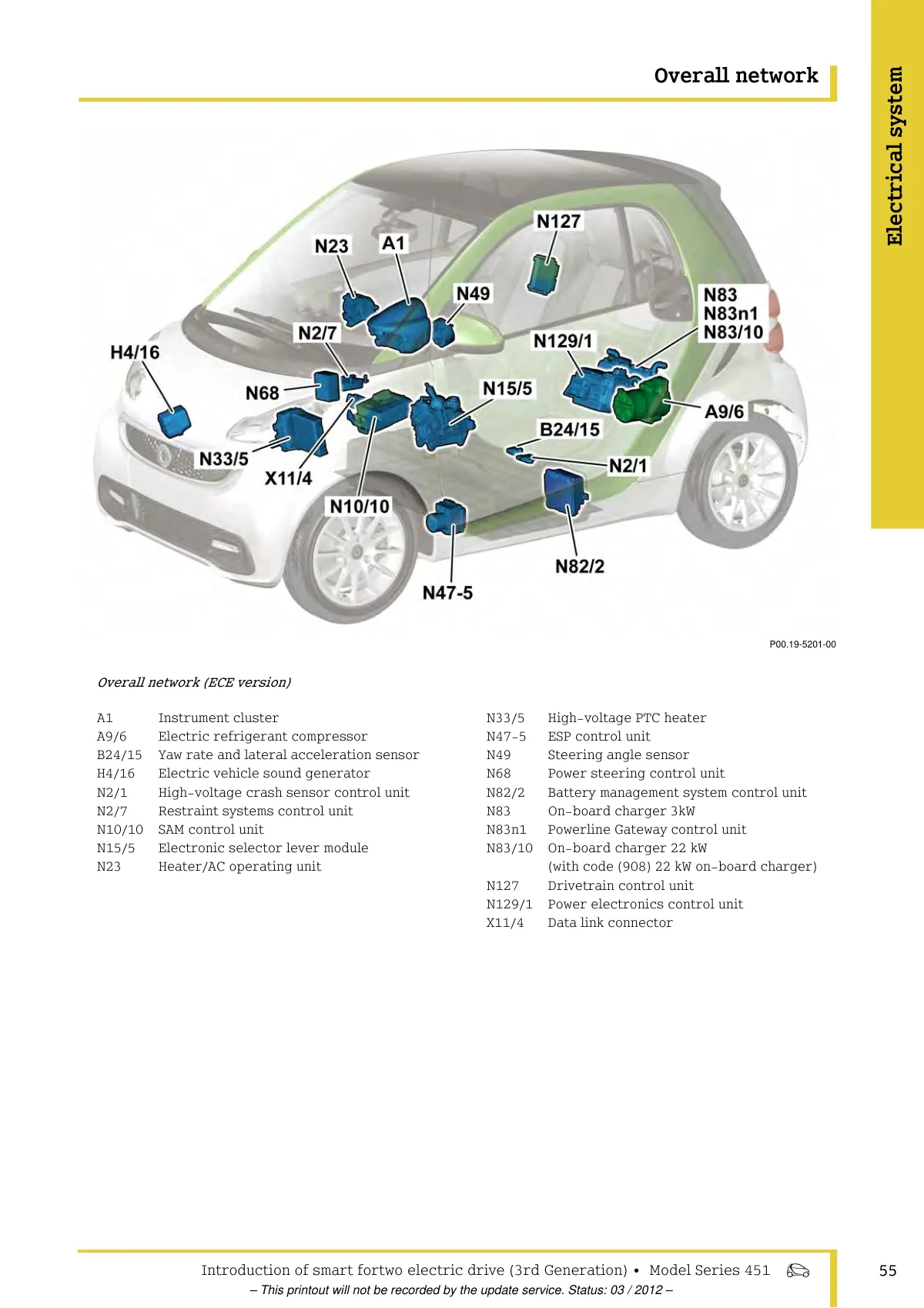

Overall electrical network layout for smart fortwo electric drive 451 showing component locations and designations.

See all EV-specific figures for the Fortwo (451), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
