Coolant circulation pump removal and installation procedure for Smart Fortwo 454 with diesel or gasoline engine, showing fuse location and component access points.

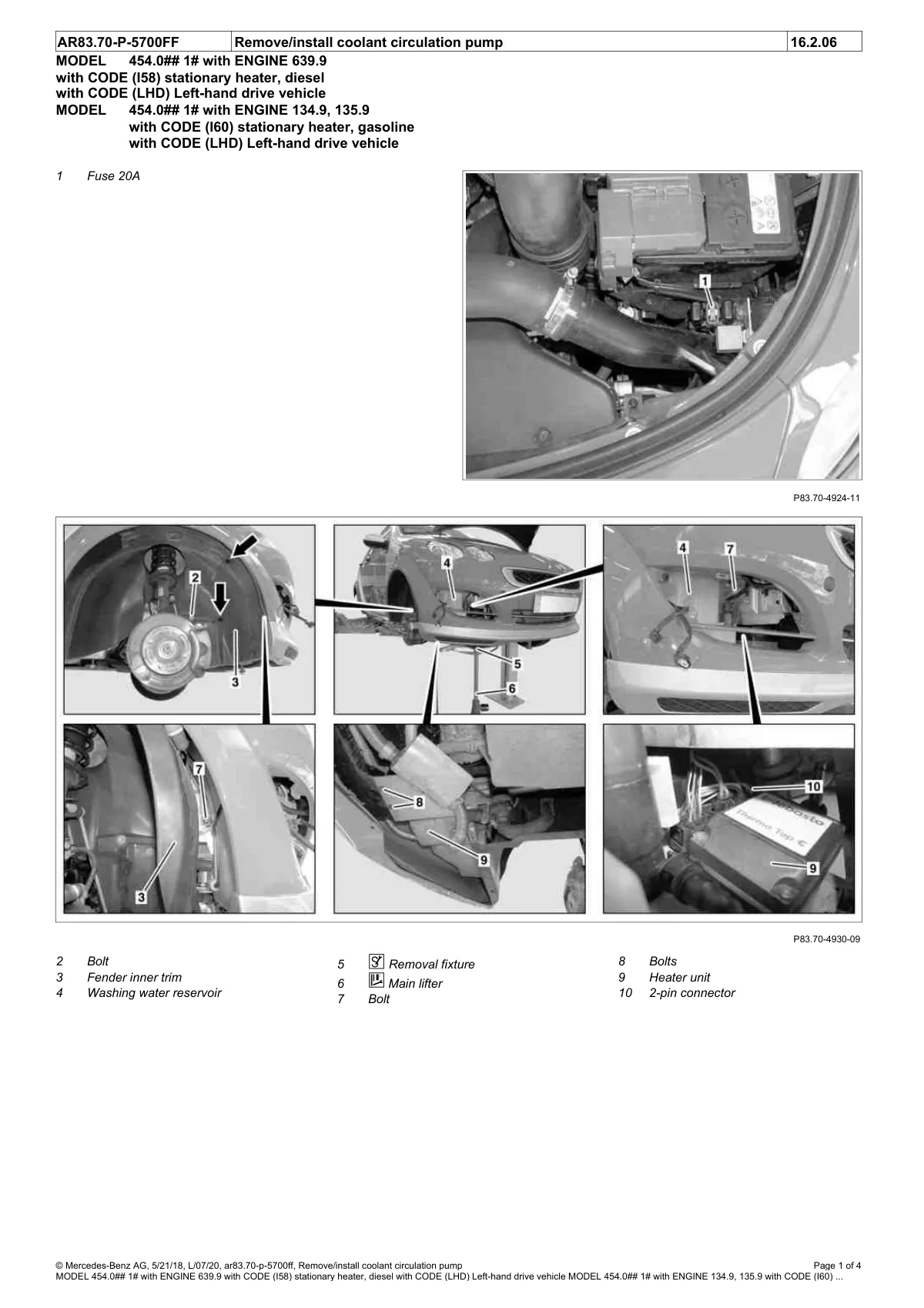

Nine numbered callout photos showing coolant pump removal steps including fuse, bolts, trim, reservoir, and heater unit connections.
