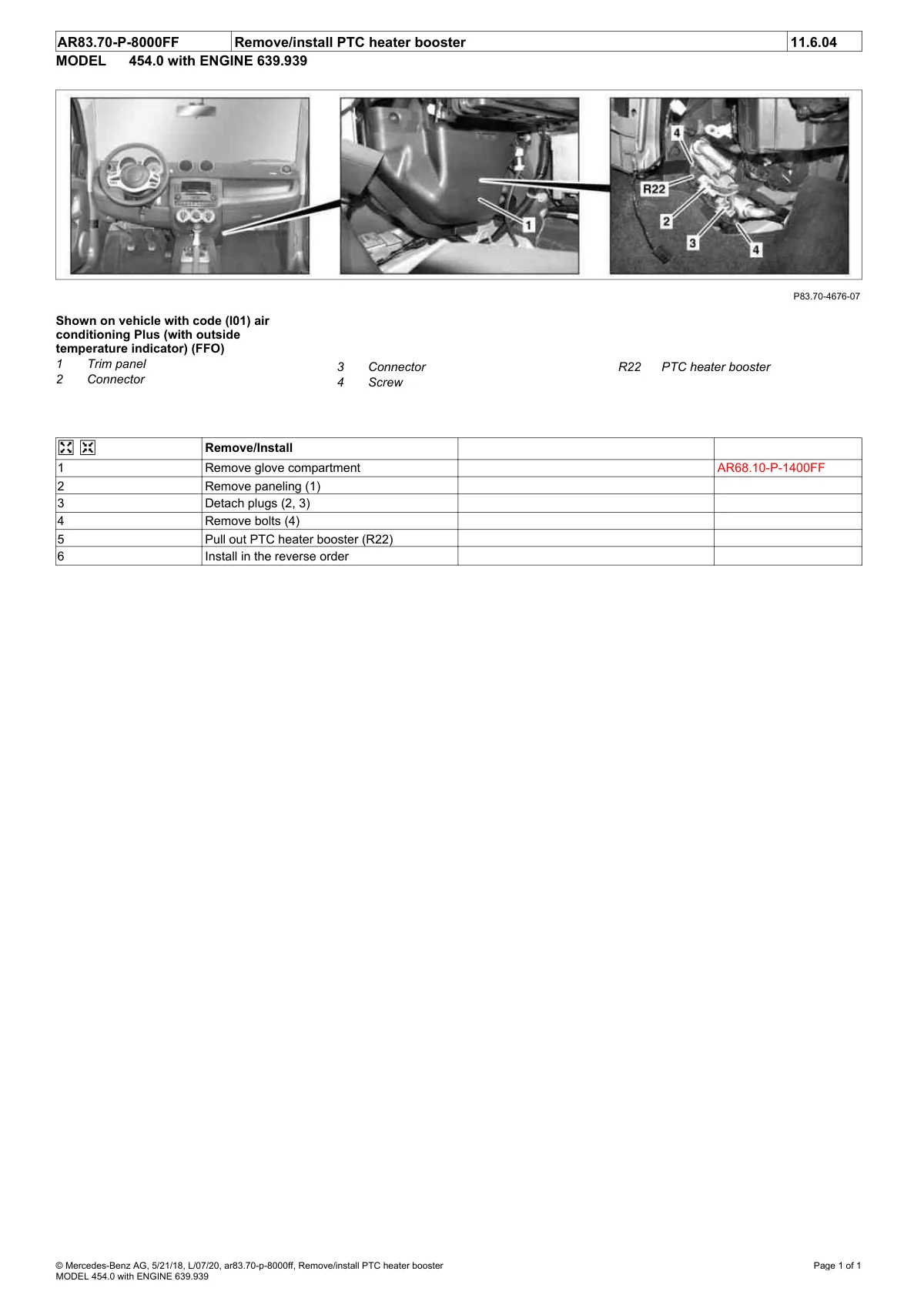

Remove/install PTC heater booster (R22) on chassis 454 with engine 639.939 — interior and engine bay locations.

Service procedure for PTC heater booster removal and installation on Smart Fortwo 454.
