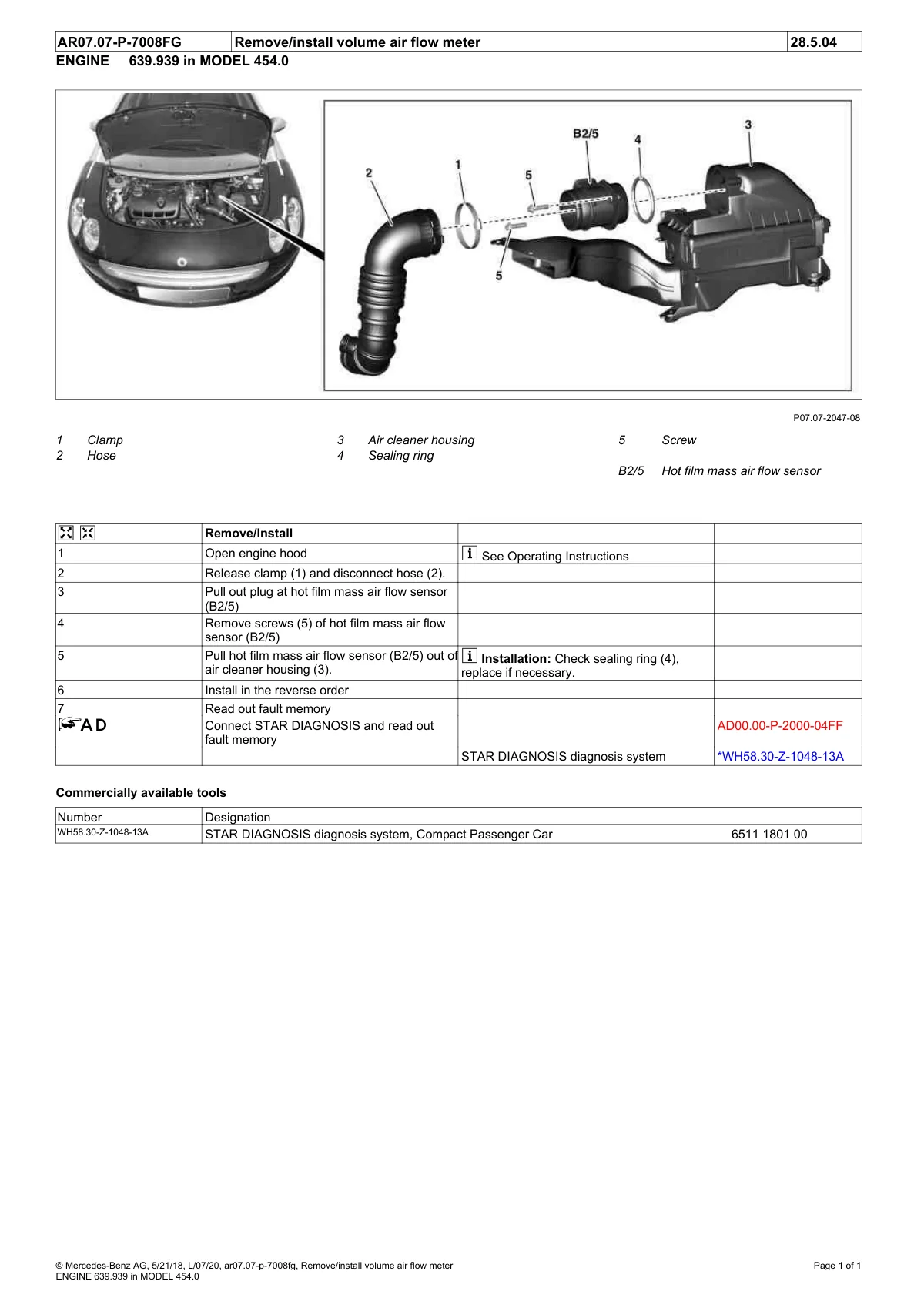

Volume air flow meter removal and installation procedure for chassis 454 engine 639.939, showing clamp, hose, housing, sealing ring, screw, and hot film mass air flow sensor.

Exploded diagram of air intake components with numbered callouts and step-by-step service procedure table.
