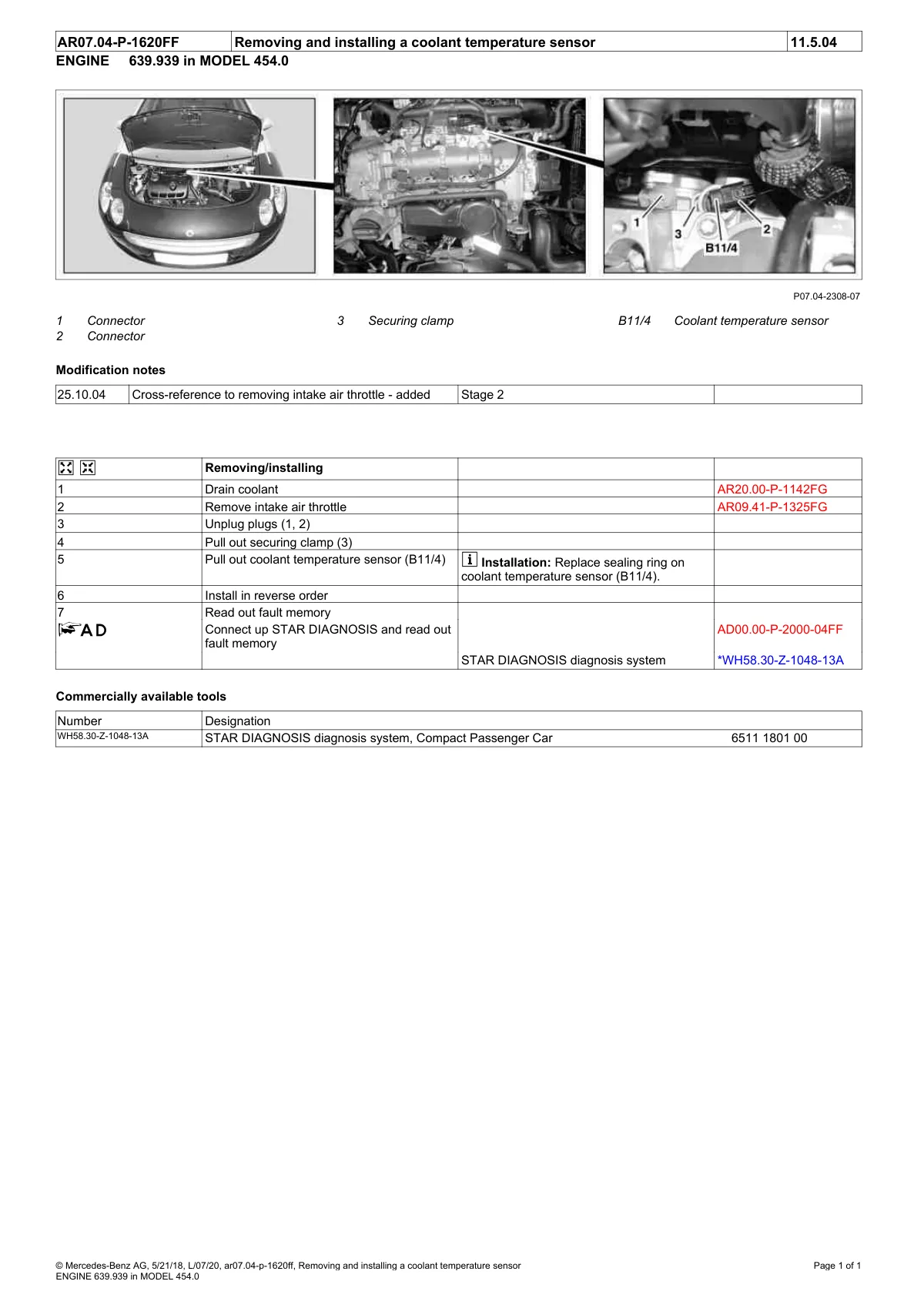

Coolant temperature sensor (B11/4) removal and installation procedure for 454.0 engine with three location photos and step-by-step instructions.

Engine bay photos showing coolant temperature sensor location and removal steps with numbered callouts and diagnostic procedure table.

View full-size image ↗

See all Powertrain figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
