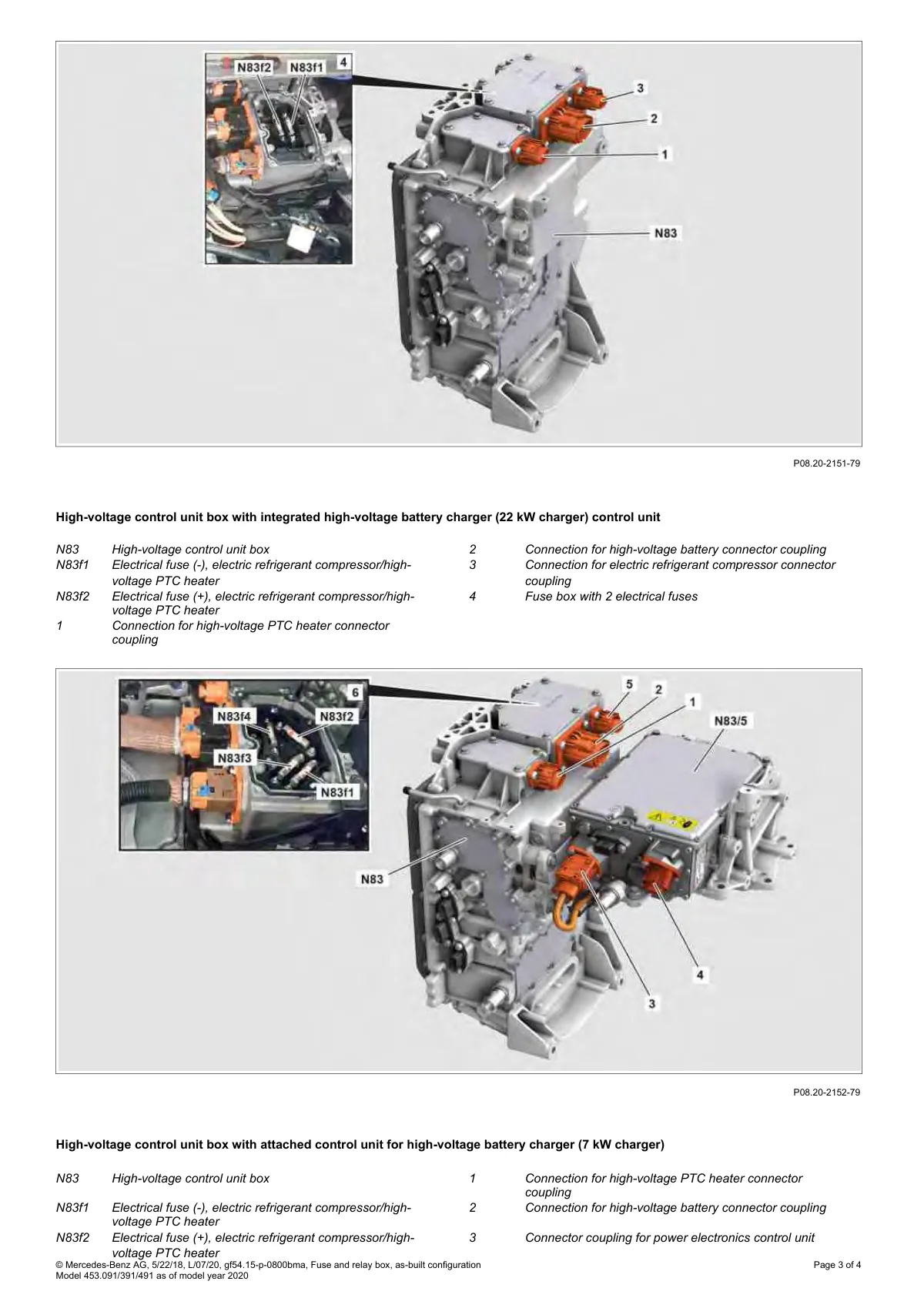

High-voltage control unit box assemblies for 22 kW and 7 kW EV battery chargers with component callouts.

Two exploded views of EV high-voltage control units showing fuse boxes, connectors, and internal components labeled N83, N83f1, N83f2.
