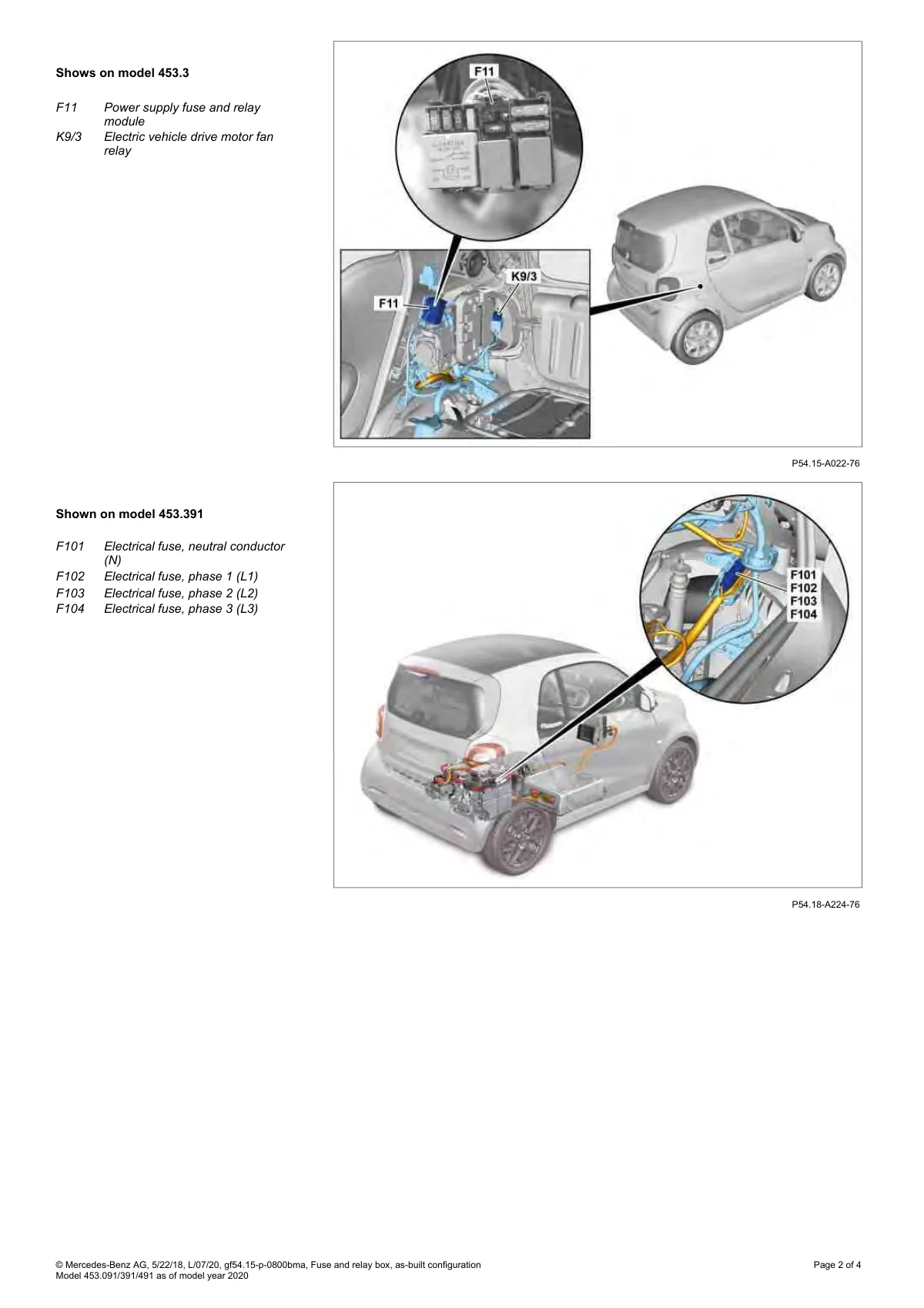

EV fuse and relay locations in chassis 453.3 and 453.391 Smart Fortwo models with component callouts.

Two Smart Fortwo diagrams showing fuse box locations and electrical component identification.

View full-size image ↗

See all EV-specific figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
