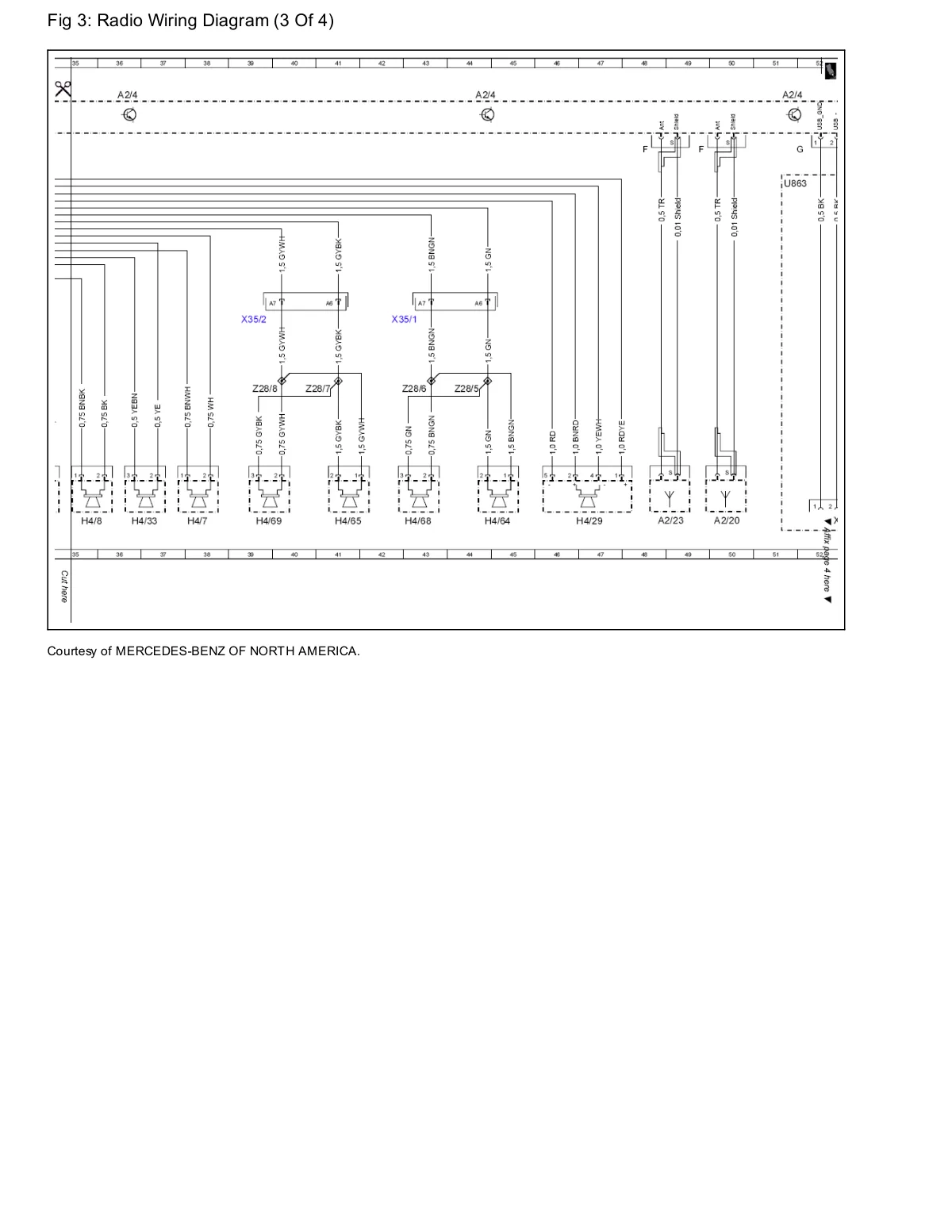

Radio wiring diagram part 3 of 4, showing speaker circuits, relay modules X35/2 X35/1, and connector routing for chassis 450/451/452/454.

Schematic wiring diagram with numbered connection points, relay symbols, and wire routing for smart car radio system.
