Radio wiring diagram part 4 of 4 for Smart 451 premium radio with sound basis system.

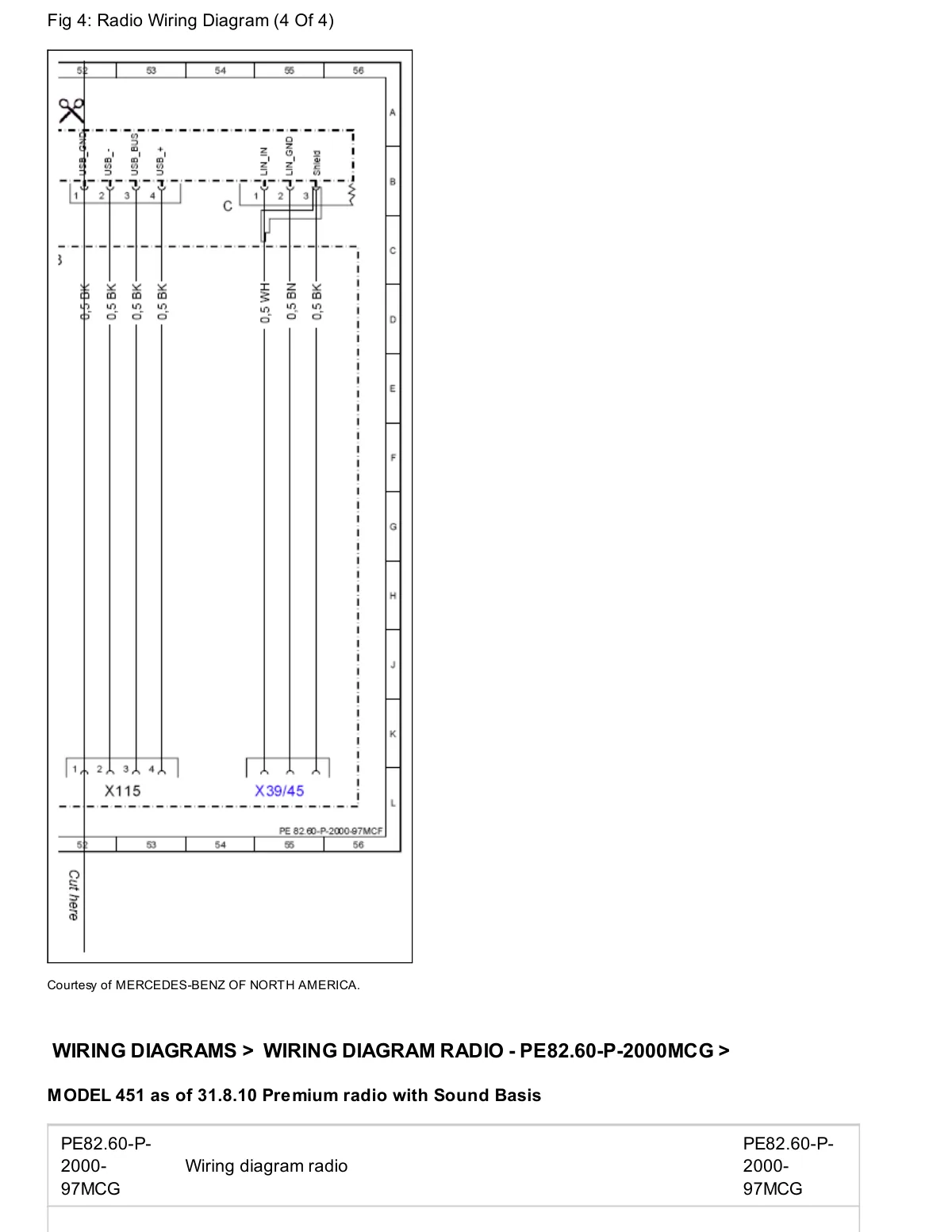

Electrical schematic showing radio connector pins, wire routes, and component connections labeled X115 and X39/45.
