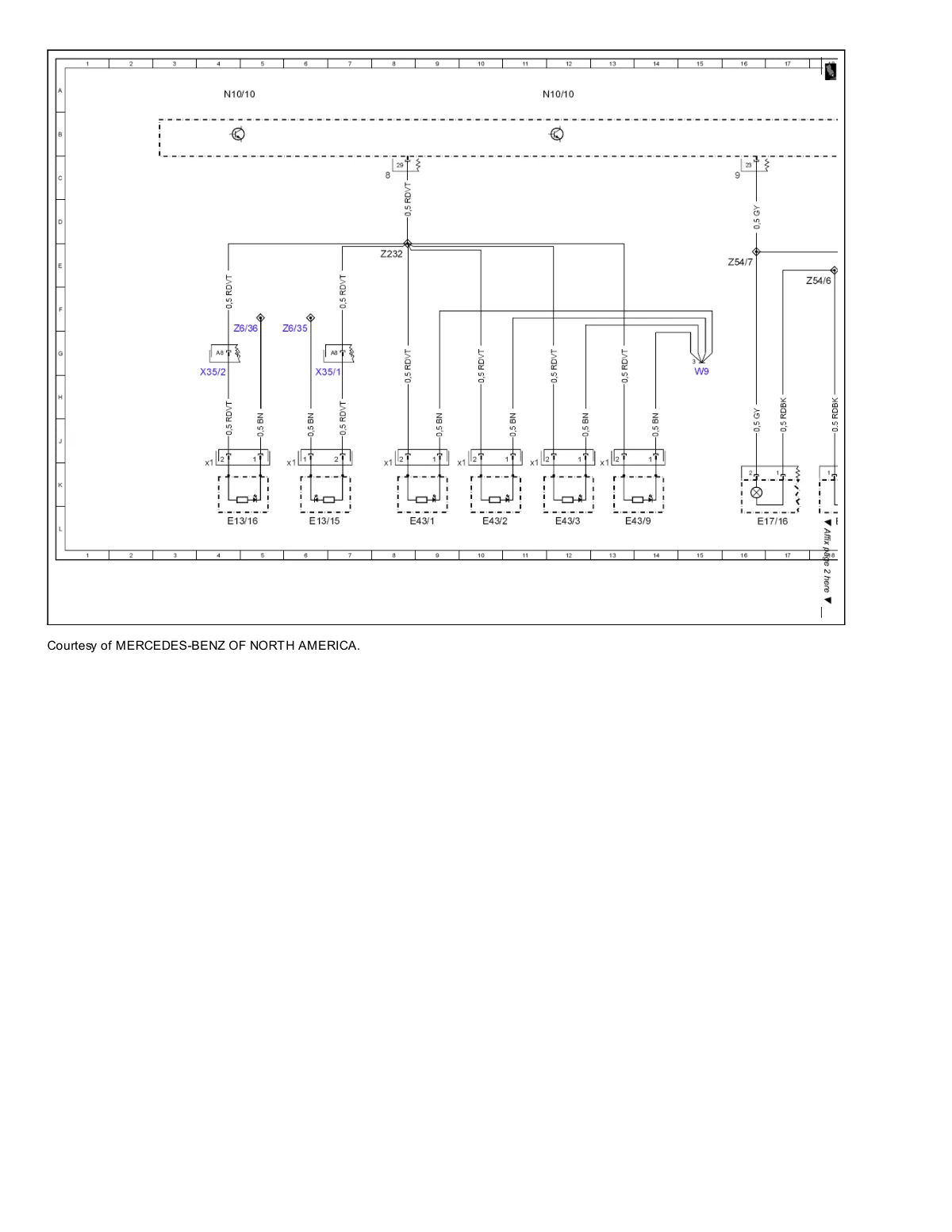

Wiring diagram for lighting circuits N10/10 showing relay and switch connections for smart 450/451/452/454 models.

Electrical schematic with numbered relays, switches, and wire connections for vehicle lighting system.
