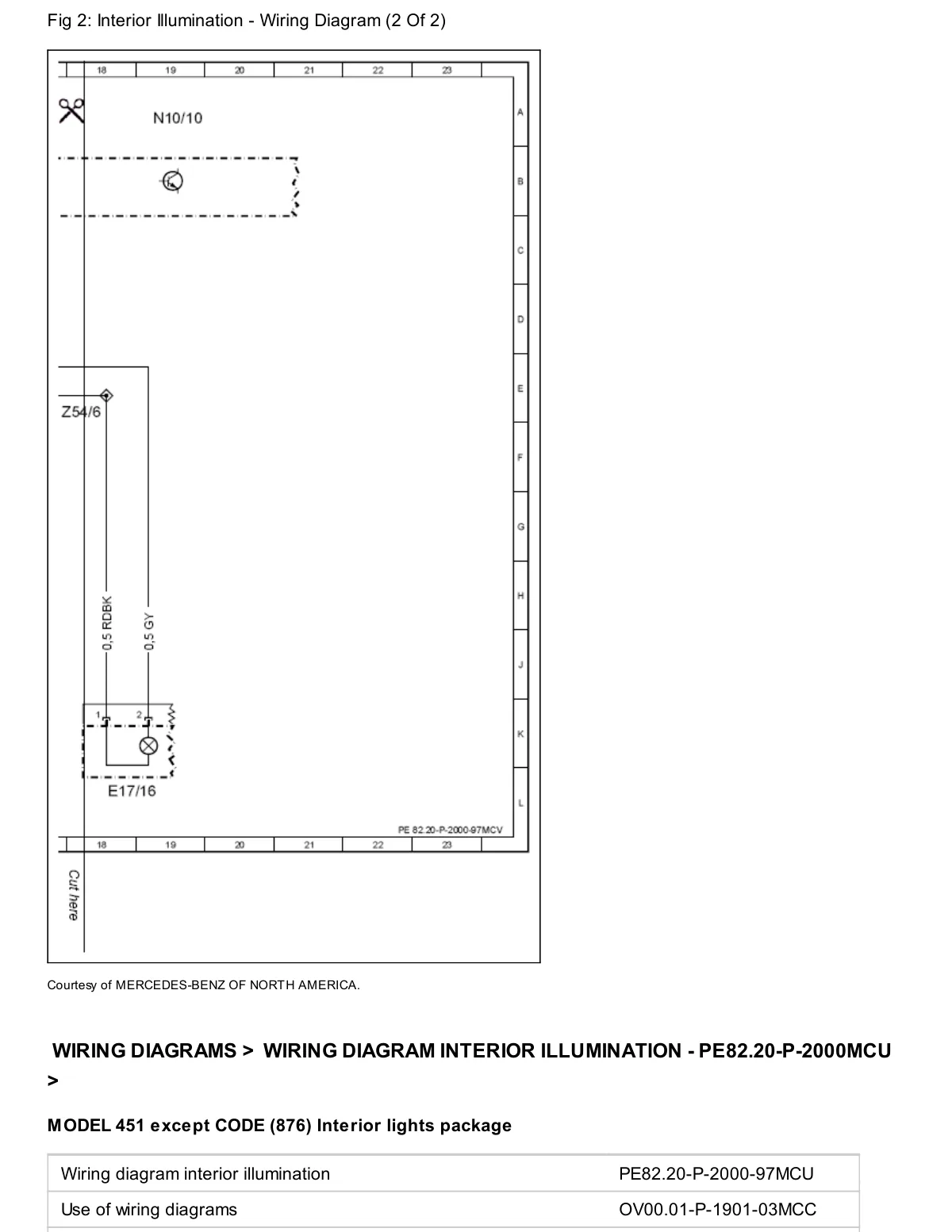

Interior illumination wiring diagram sheet 2 of 2, MODEL 451 chassis without CODE 876 interior lights package.

Wiring schematic showing N10/10 connector, Z54/6 junction, E17/16 component, fuses 0.5 FRBk and 0.5 GV1.
