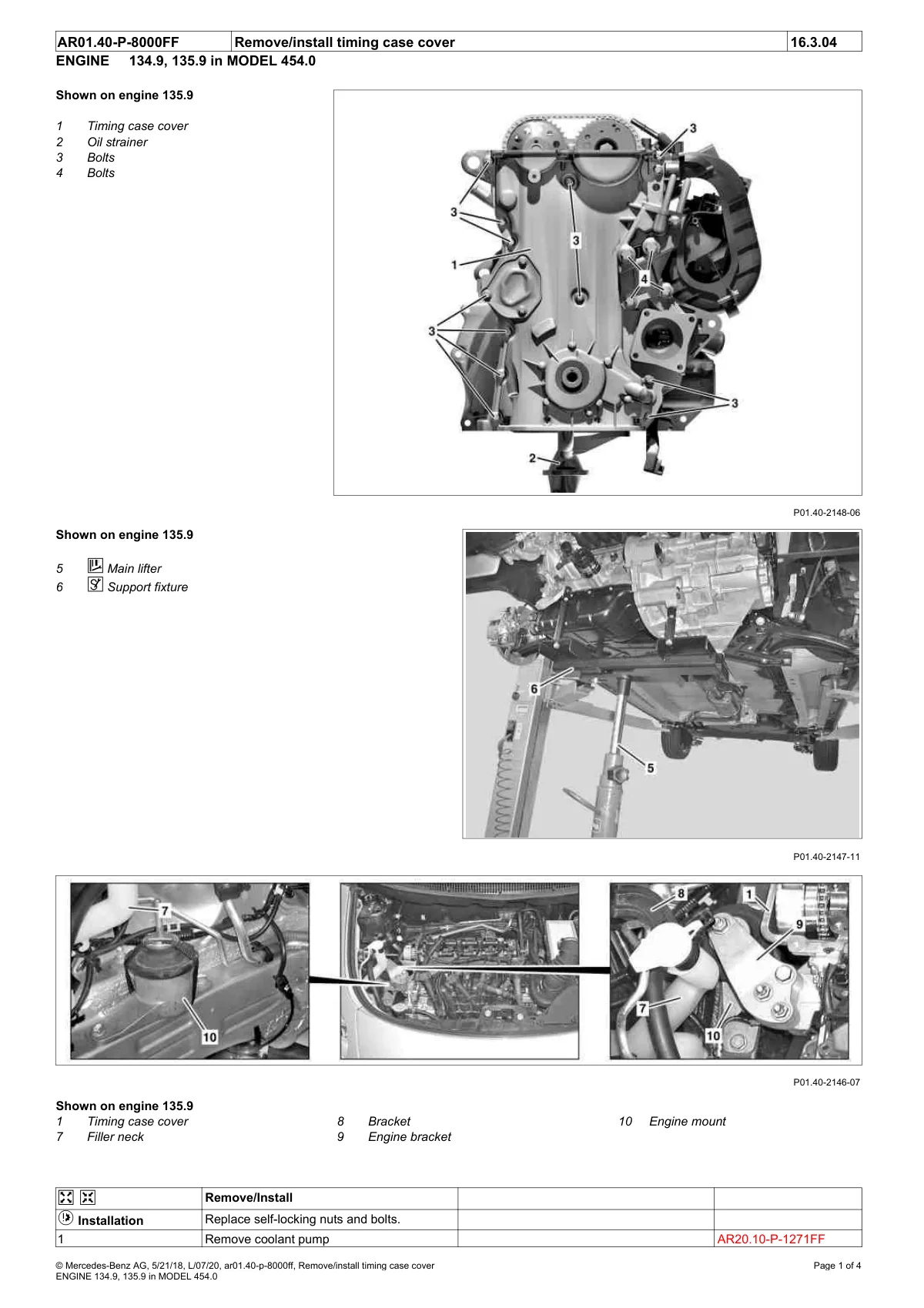

Timing case cover removal/installation procedure for Smart 454.0 engine models 134.9 and 135.9 with exploded view and mounting details.

Engine timing case cover removal diagram with callout numbers identifying cover, oil strainer, bolts, lifter, fixture, bracket and mounts.
