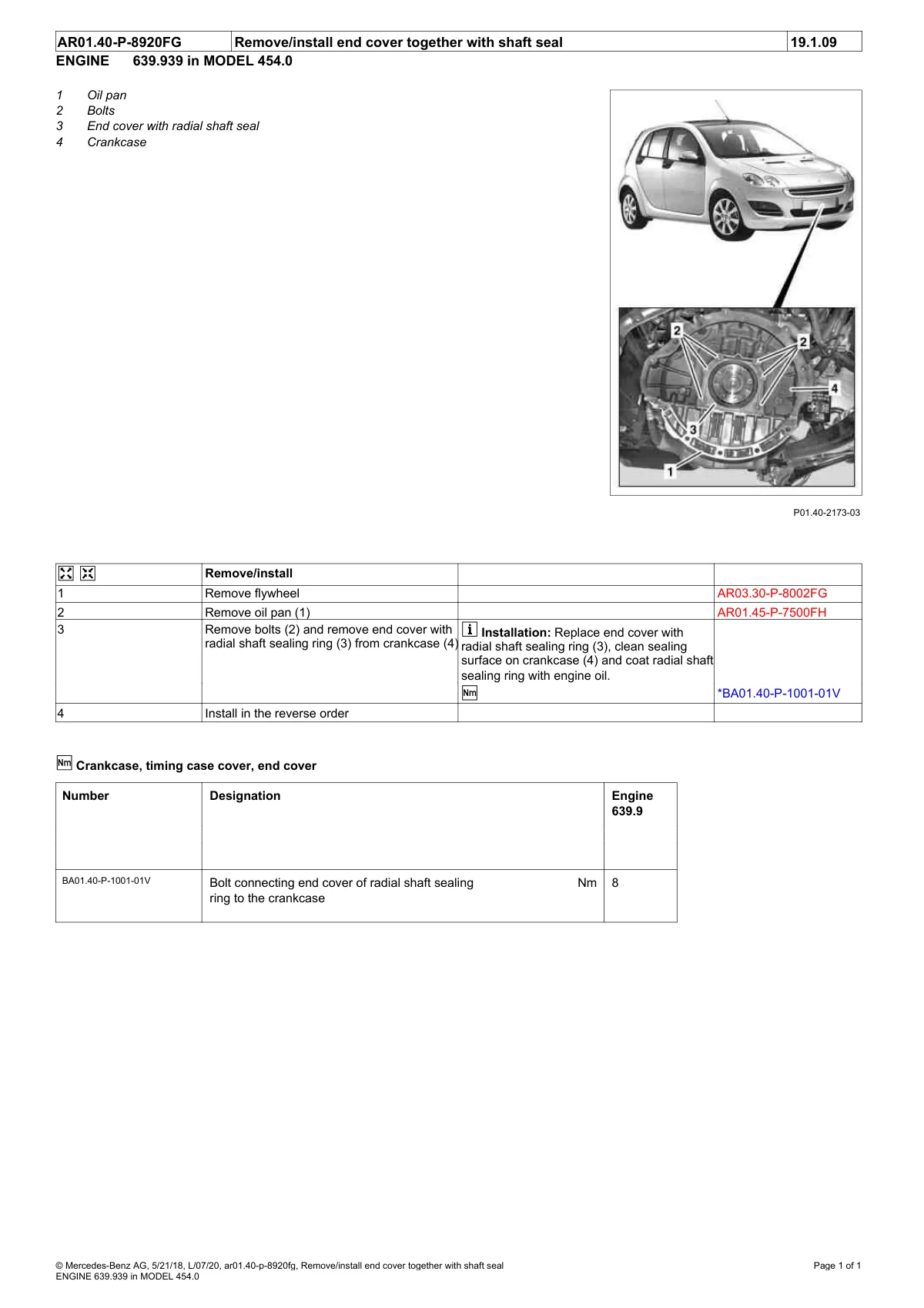

Engine 639.939 model 454.0 oil pan end cover removal and installation with radial shaft seal procedure.

Smart Fortwo 454 engine oil pan end cover assembly diagram with numbered callouts showing removal steps.
