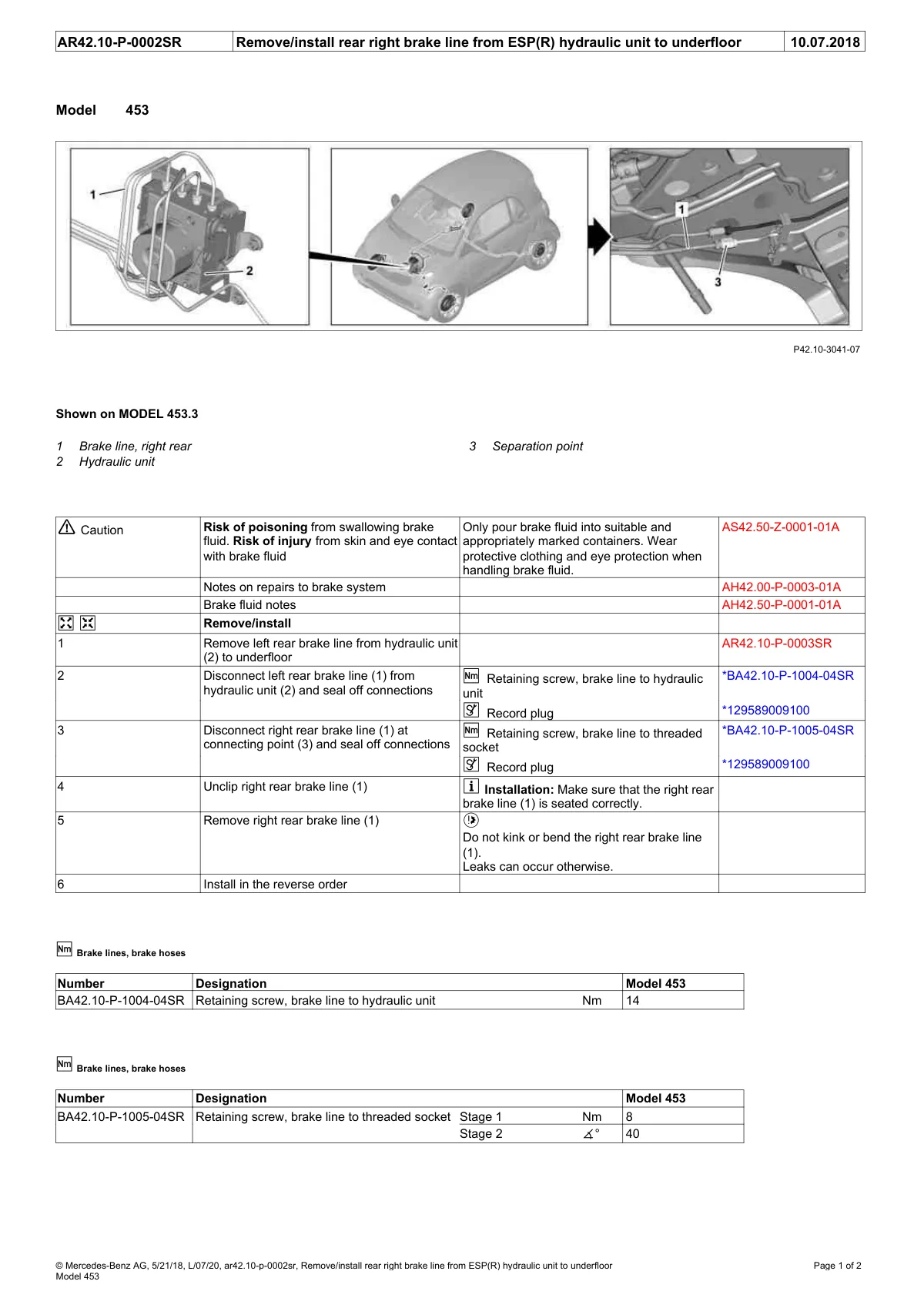

Model 453 rear right brake line removal/installation from ESP(R) hydraulic unit to underfloor with labeled callouts and separation point.

Three diagrams showing brake line routing, hydraulic unit, and separation point on Smart Fortwo 453.
