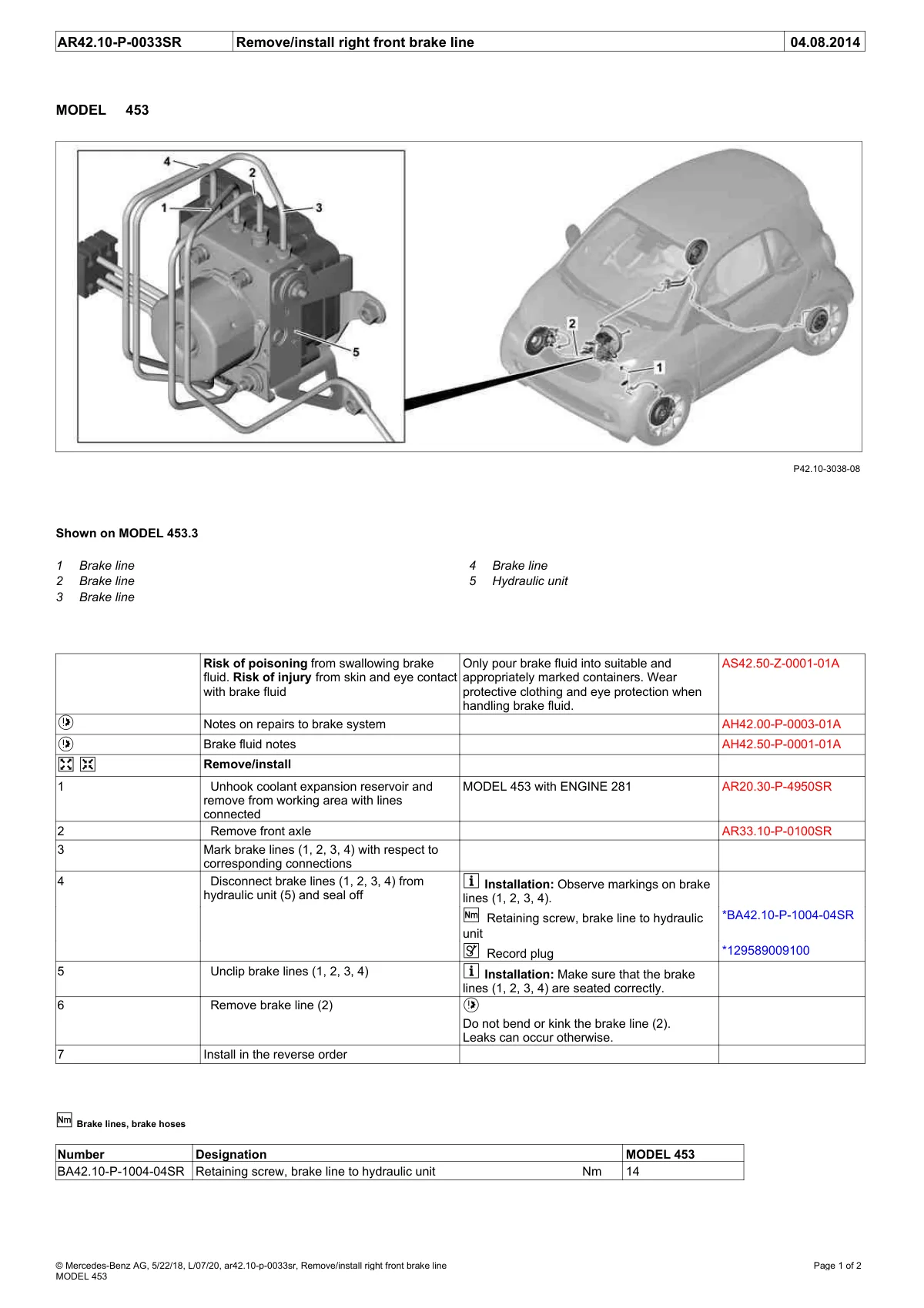

MODEL 453 right front brake line removal and installation with hydraulic unit and brake line routing diagram.

Brake line assembly diagram showing four numbered brake lines connected to hydraulic unit on smart fortwo 453 model.
