EP filler bonding surface preparation diagram for Smart 450/451/452/454 windshield and roof panel installation.

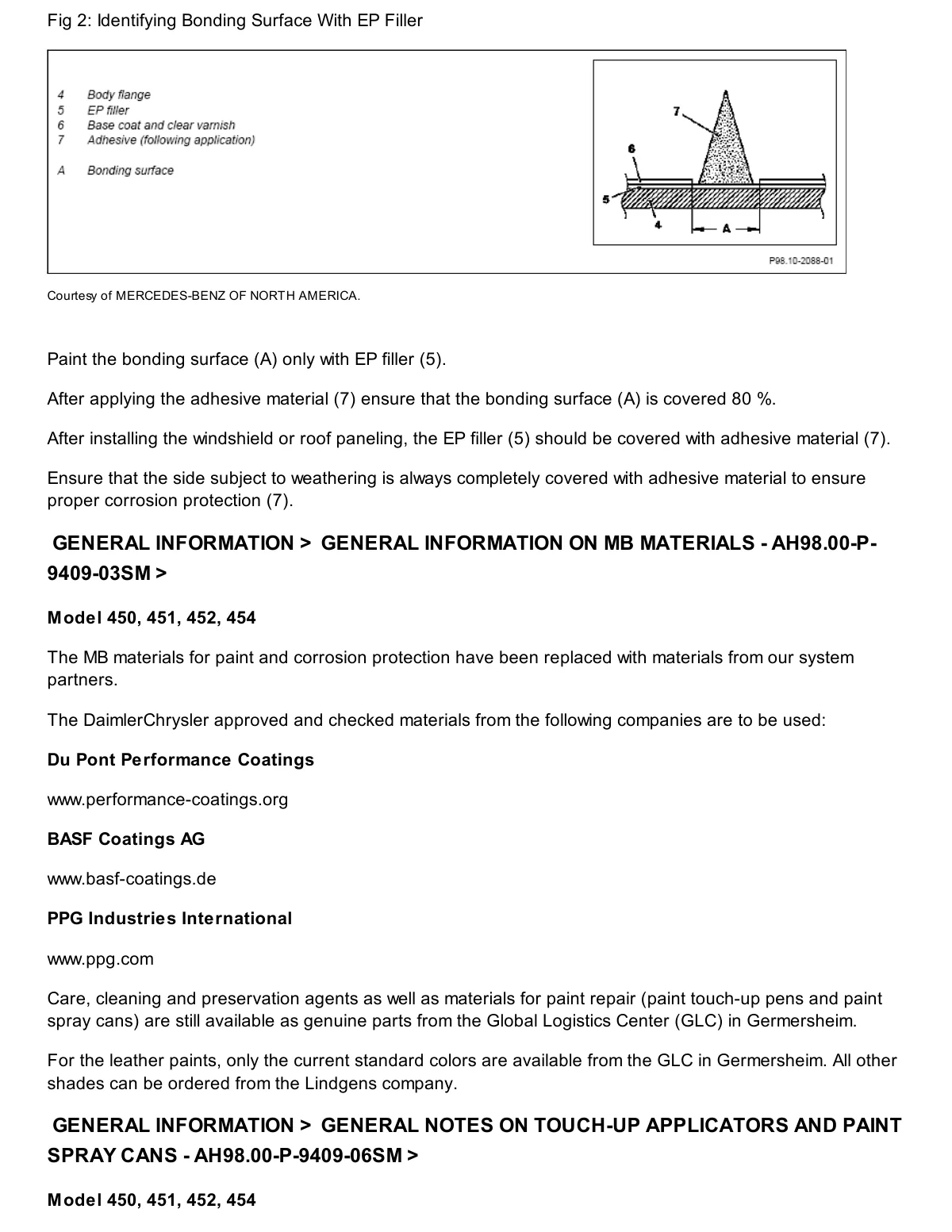

Cross-section diagram showing EP filler application on body flange with numbered callouts 4-7 indicating layers and adhesive coverage.
