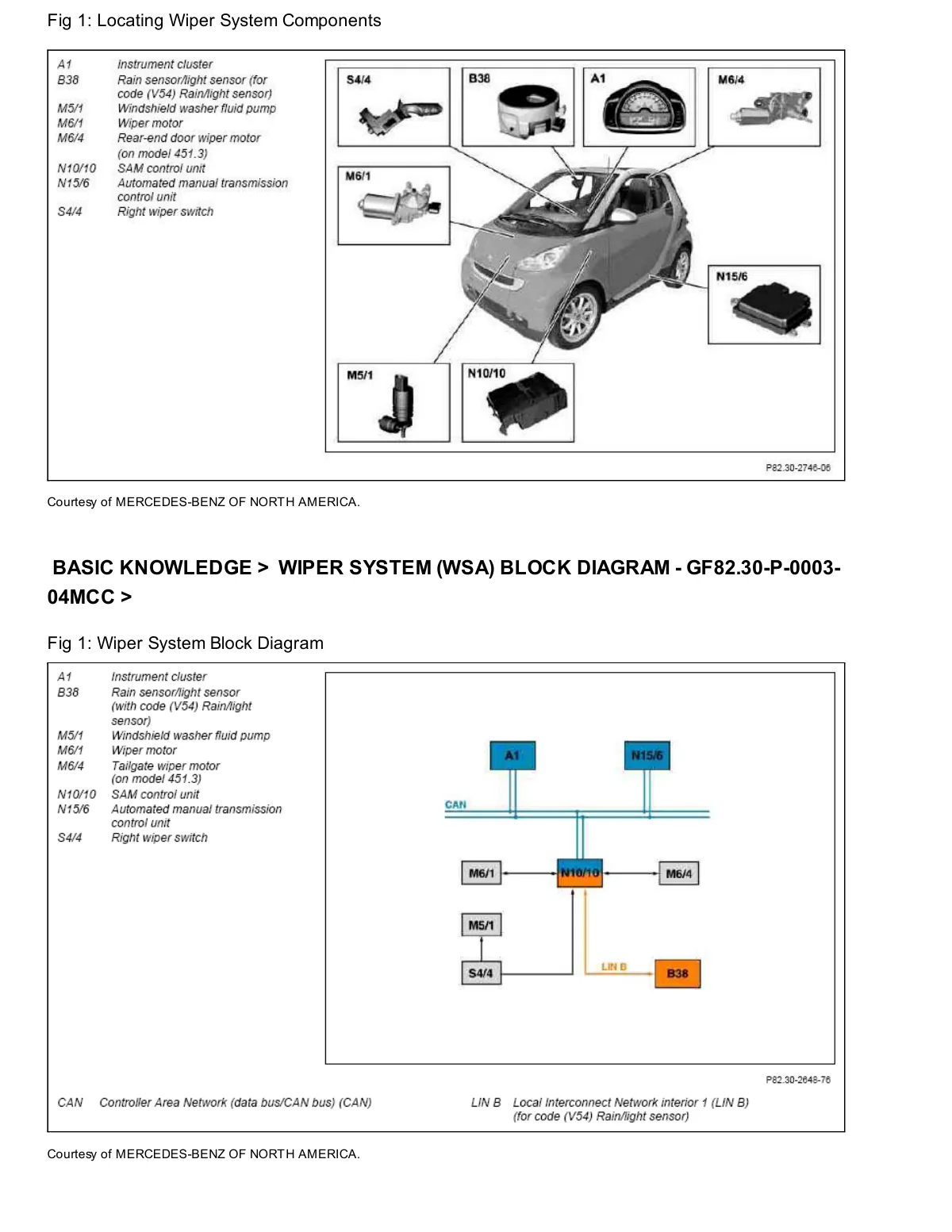

Wiper system component locations and block diagram for smart fortwo (450/451/452/454) showing SAM control unit integration.

Wiper system component diagram with labeled parts and control module interconnection chart
