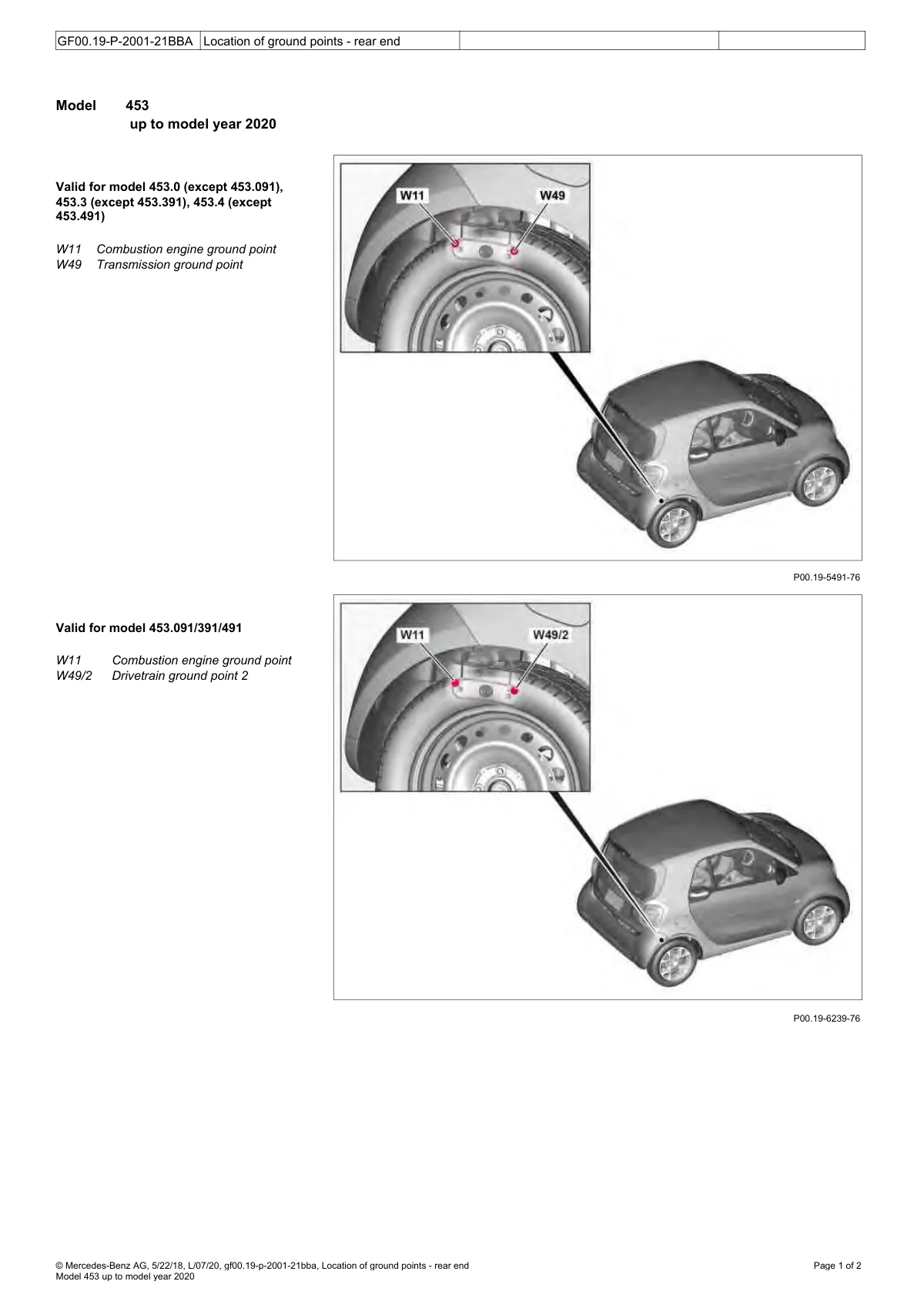

Chassis 453 rear end ground point locations W11 engine and W49 transmission, up to model year 2020.

Diagram showing rear wheel ground points W11 and W49 on Smart Fortwo 453.
