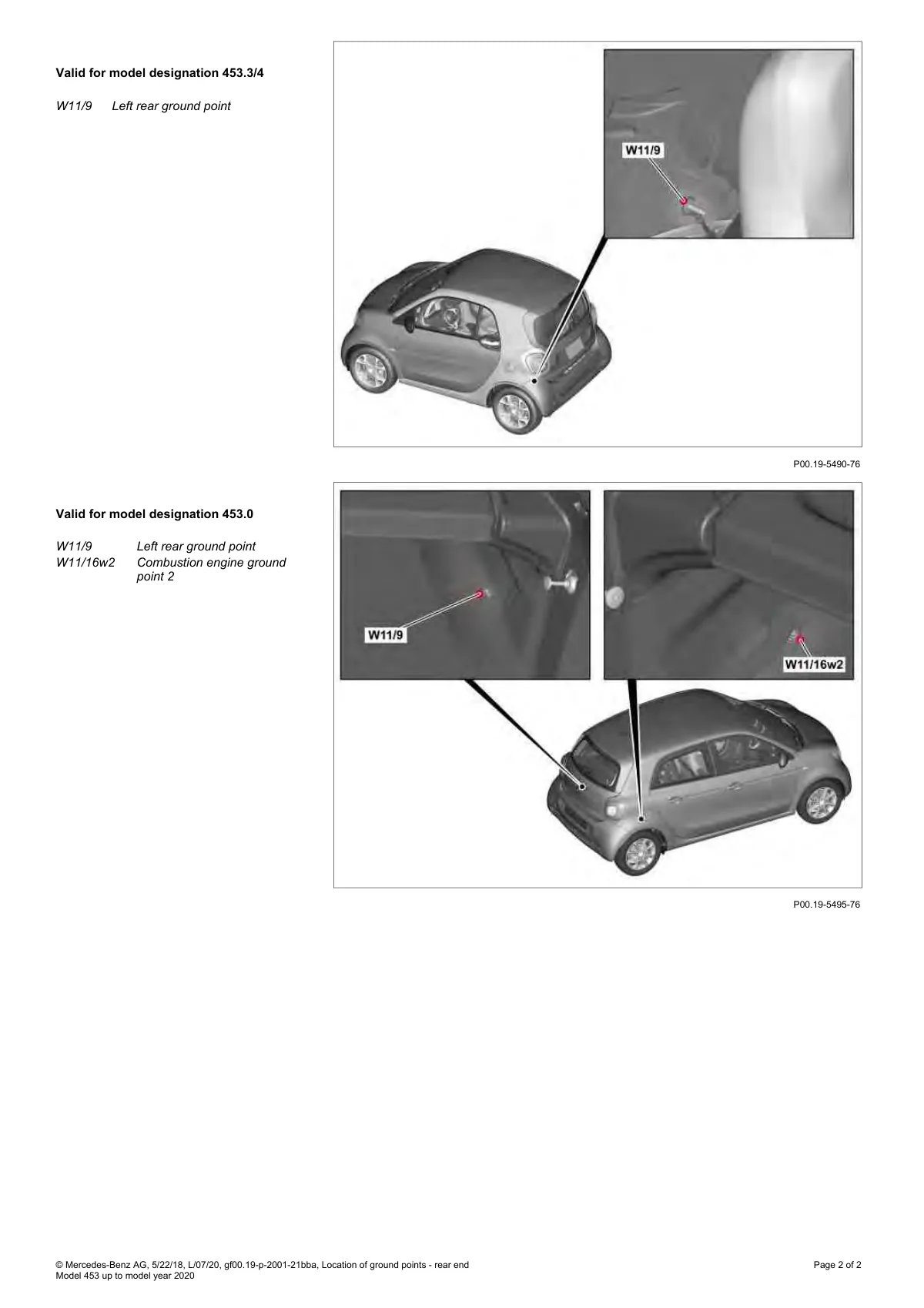

Chassis 453 left rear ground point W11/9 and engine ground point W11/16w2 locations with callout detail views.

Smart Fortwo 453 rear ground point locations marked on vehicle underside with magnified detail callouts.
