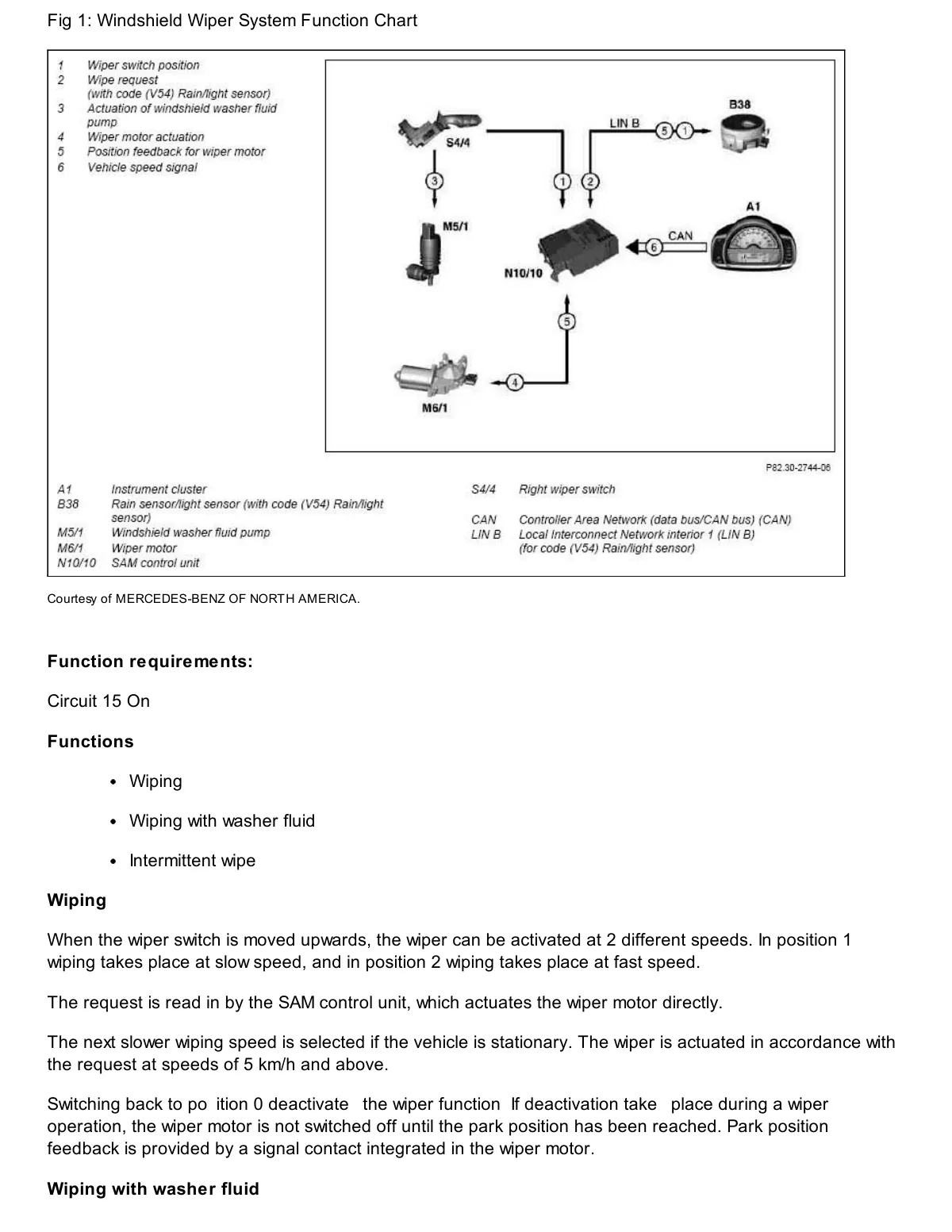

Windshield wiper system function chart showing wiper switch, motor, washer pump, SAM control unit, and sensor interconnections.

Schematic diagram of windshield wiper system components and their electrical connections.
