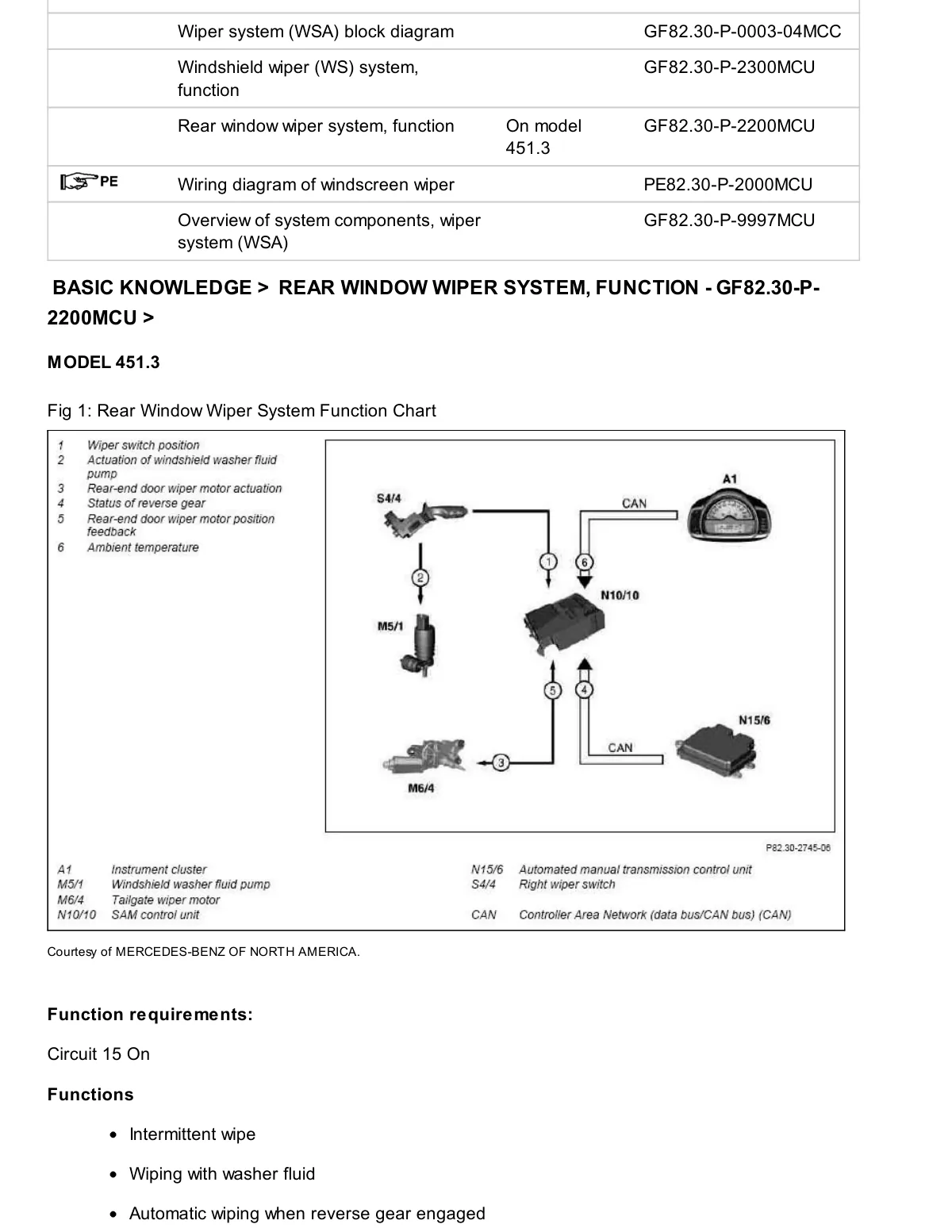

Rear window wiper system function block diagram for model 451.3 showing component connectivity and CAN bus architecture.

Schematic diagram of rear wiper system components including switch, motor, SAM unit, and instrument cluster connections.
