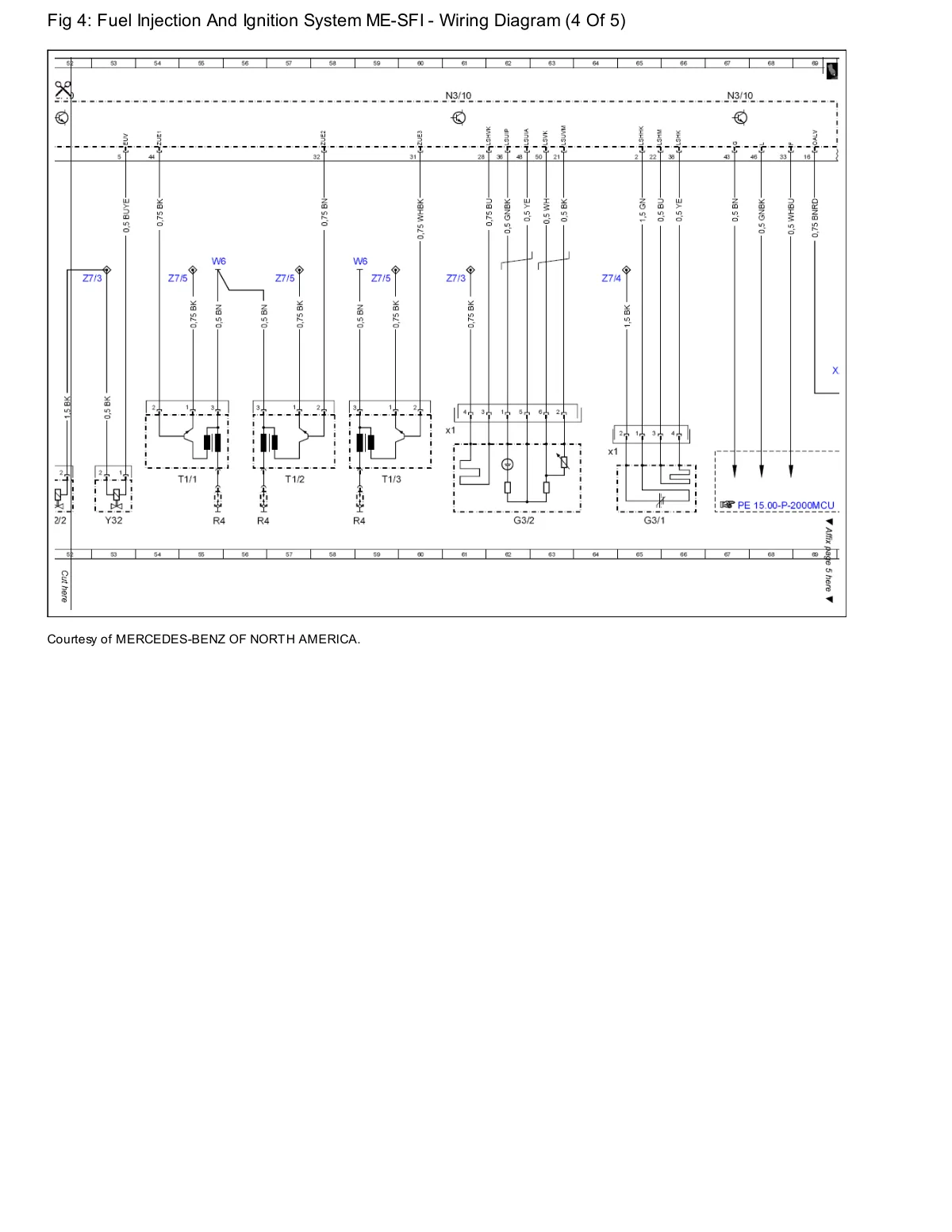

Fuel injection and ignition system ME-SFI wiring diagram part 4 of 5, showing injector circuits and ignition coil connections.

Wiring diagram with multiple injector transistors T1/1-T1/3, coils Z7/3-Z7/4, relays R4, and control module connections.
