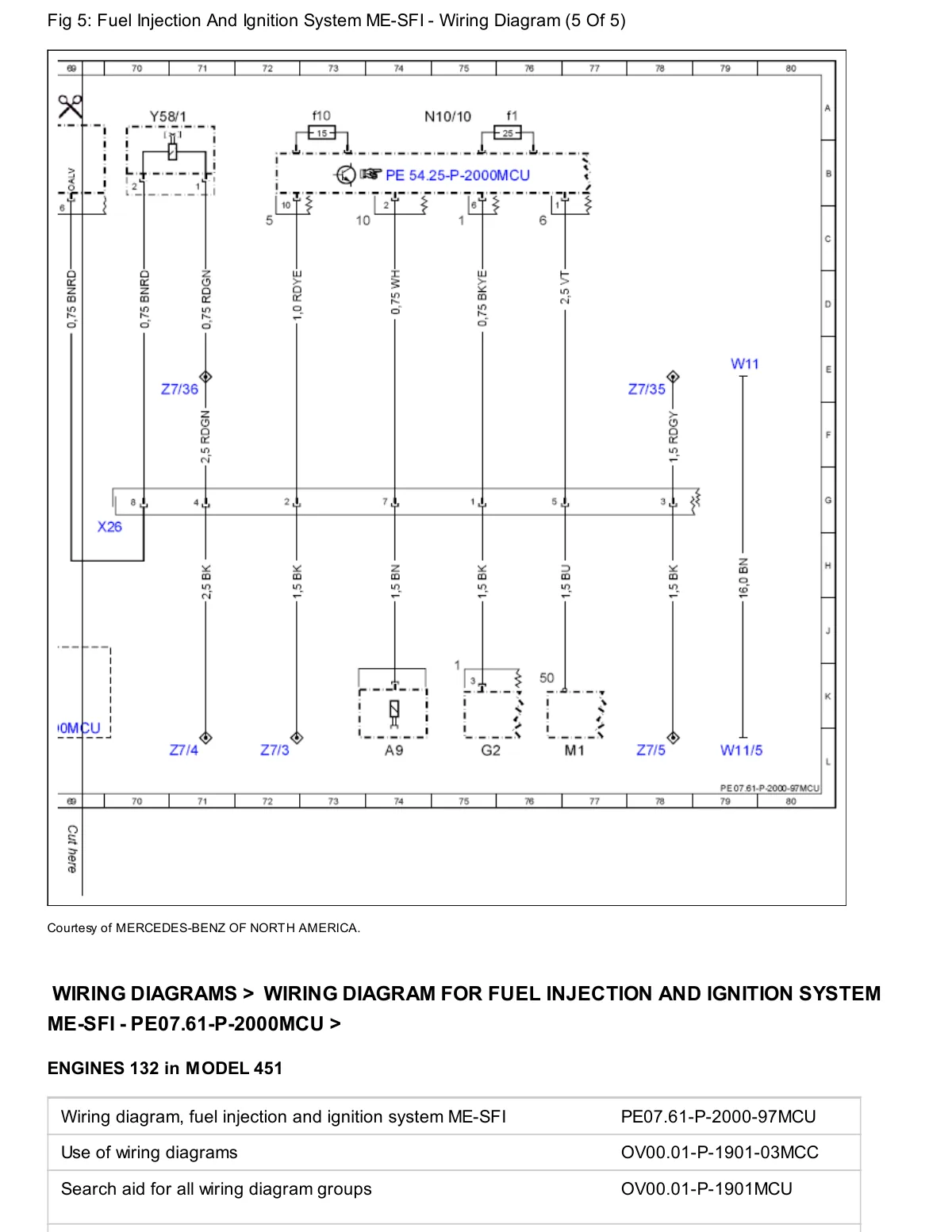

Fuel injection and ignition system ME-SFI wiring diagram part 5 of 5 for smart 451 engine 132 showing MCU connectors and component circuits.

Wiring diagram for fuel injection ignition system with connectors, relays, and component connections labeled.
