Radio wiring diagram part 3 of 4 showing speaker circuits and connector pinouts for smart 450/451/452/454 models.

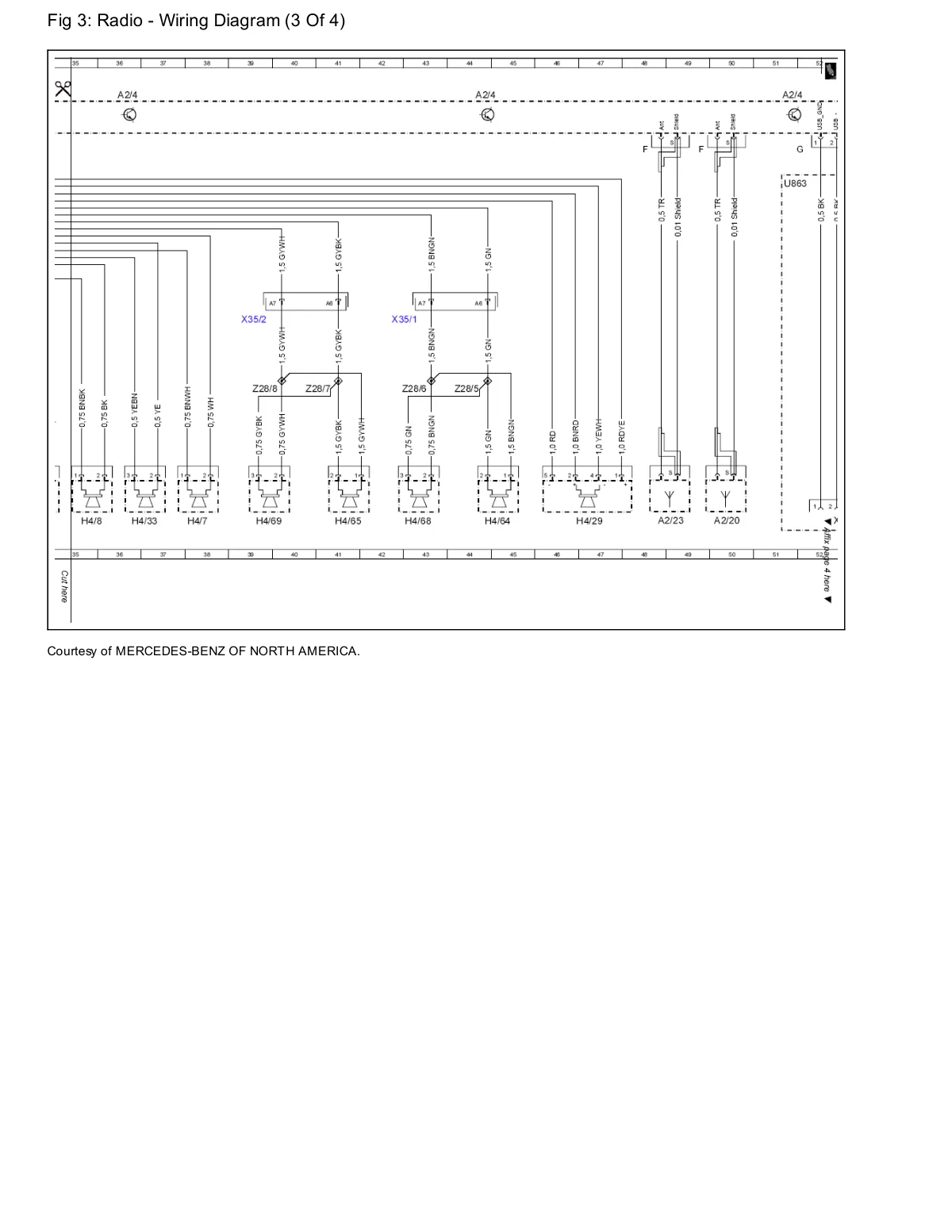

Electrical schematic of radio speaker wiring with multiple connectors labeled X35/2, X35/1, Z28/8, Z28/5, and component references.

View full-size image ↗

See all Electrical figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
