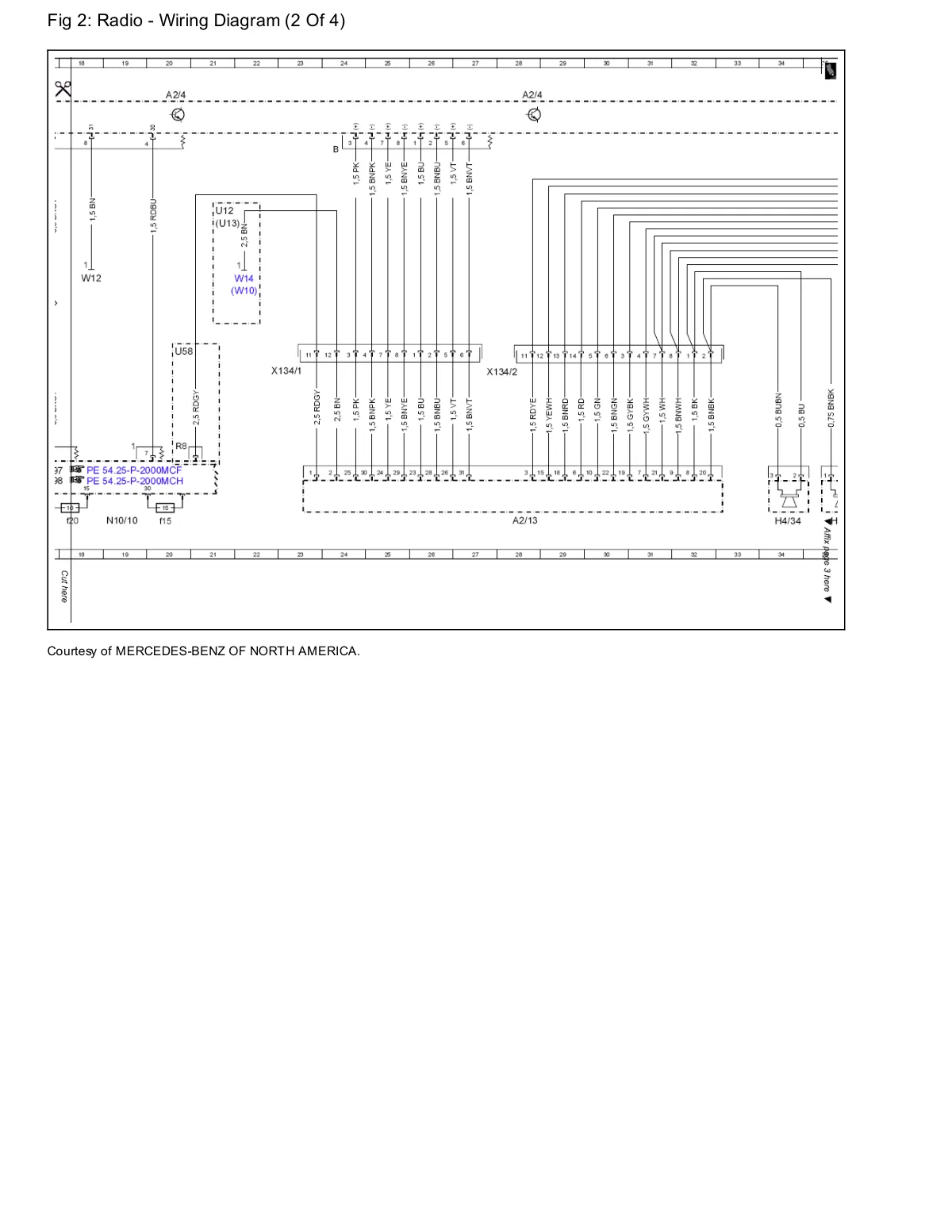

Radio wiring diagram page 2 of 4 showing connector pinouts and signal routing for smart 450/451/452/454 models.

Wiring diagram with multiple connectors X134/1, X134/2, A2/13, and circuit paths labeled with wire colors and signal names.
