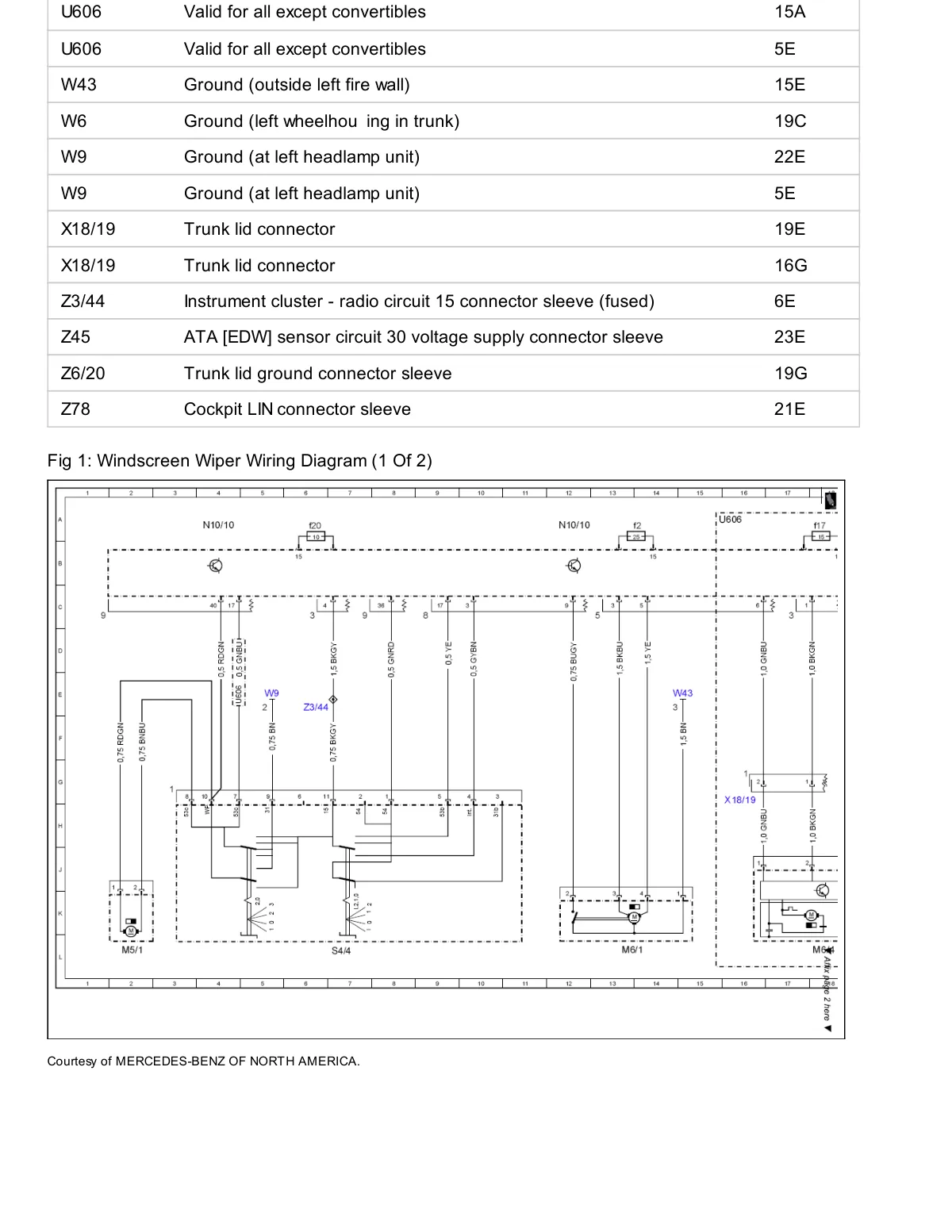

Windscreen wiper wiring diagram part 1 of 2, showing ground connections, connectors, and component locations for smart 450/451/452/454.

Wiring schematic with labeled connectors, ground points, and component references for windscreen wiper system.
