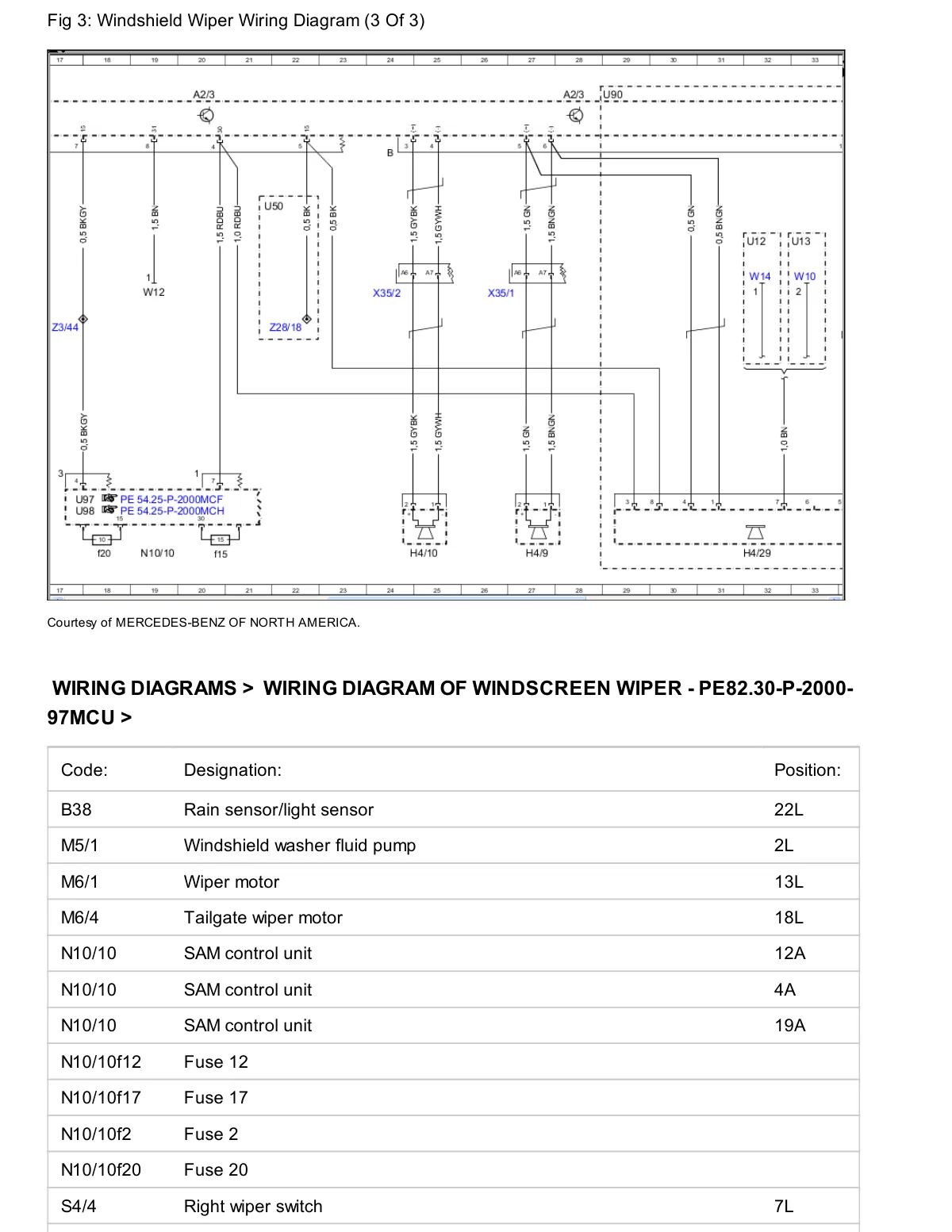

Windshield wiper wiring diagram part 3 of 3, showing motor circuits, SAM control unit connections, and sensor inputs for chassis 450/451/452/454.

Wiring schematic for windshield wiper system with motors, relays, fuses, and control module connections.

View full-size image ↗

See all Electrical figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
