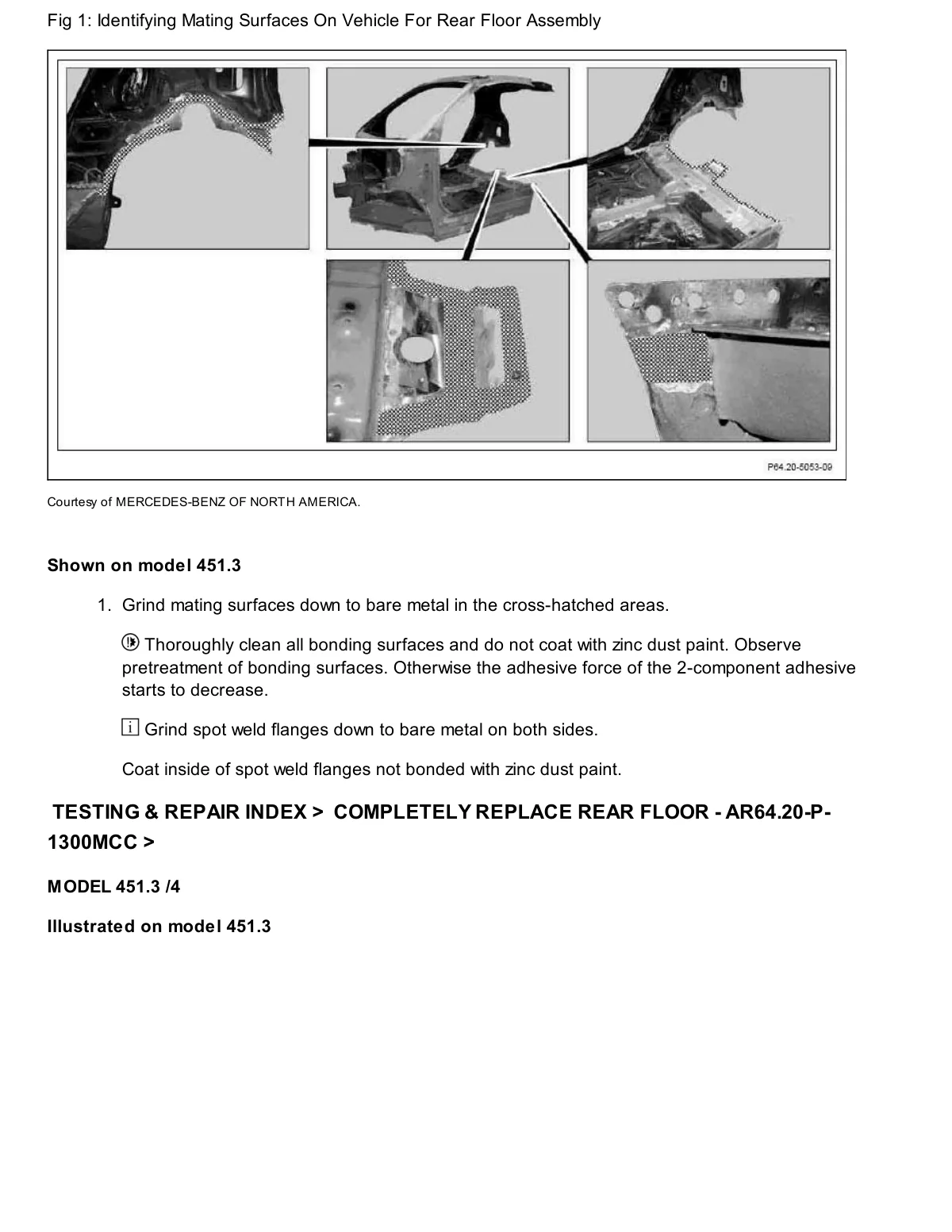

Mating surface preparation locations for rear floor assembly replacement on chassis 451.3 Smart fortwo.

Five photographs showing cross-hatched areas on vehicle floor panels where surfaces must be ground to bare metal.
