Smart intake manifold boot and turbocharger intake hose removal procedure with jubilee clip and breather pipe disconnection steps.

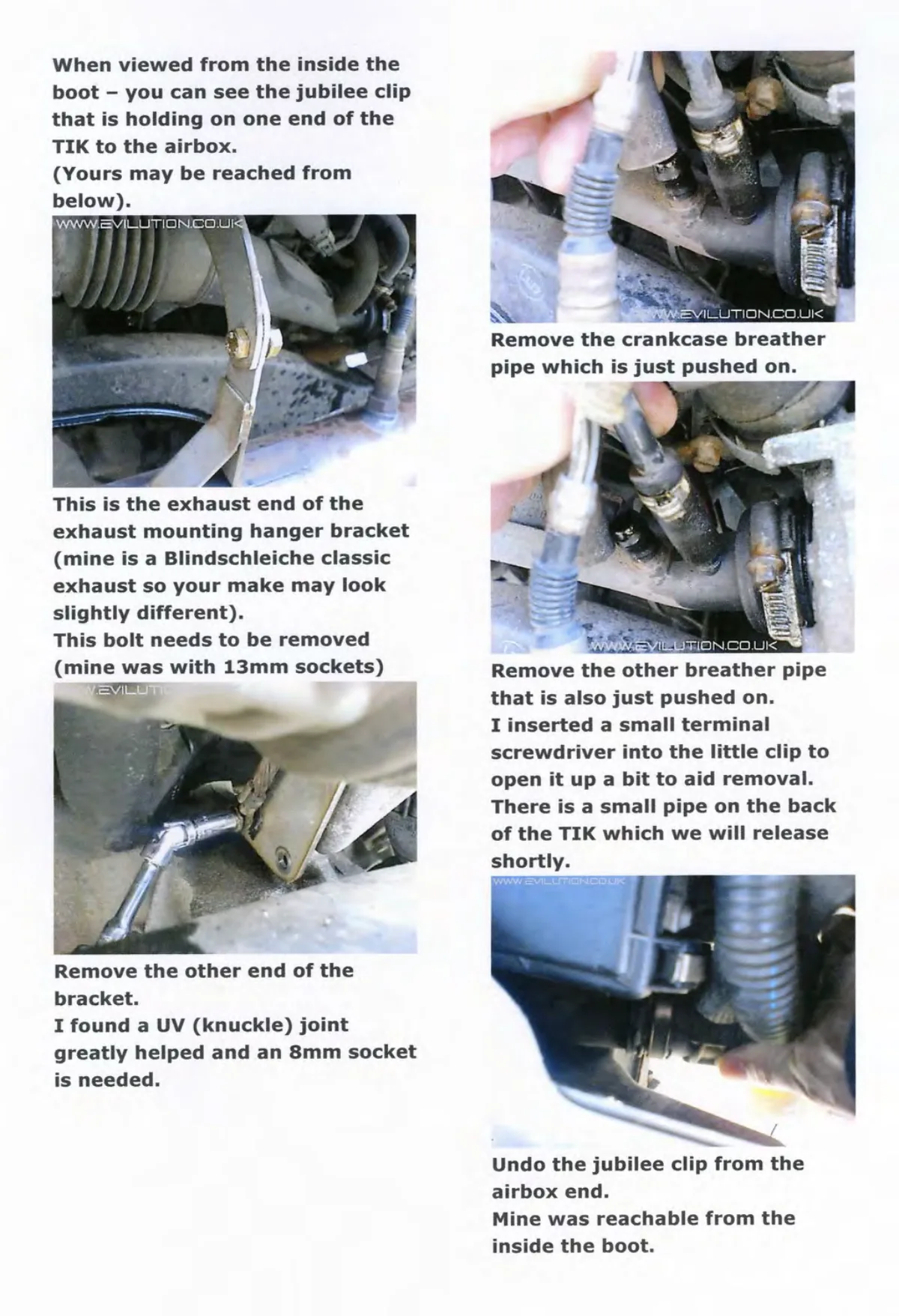

Step-by-step photos showing removal of TIK intake hose, crankcase breather pipes, exhaust mounting bracket, and jubilee clip from airbox.
