TIK pipe removal procedure on Smart Fortwo, showing crash bar removal and mounting bracket access.

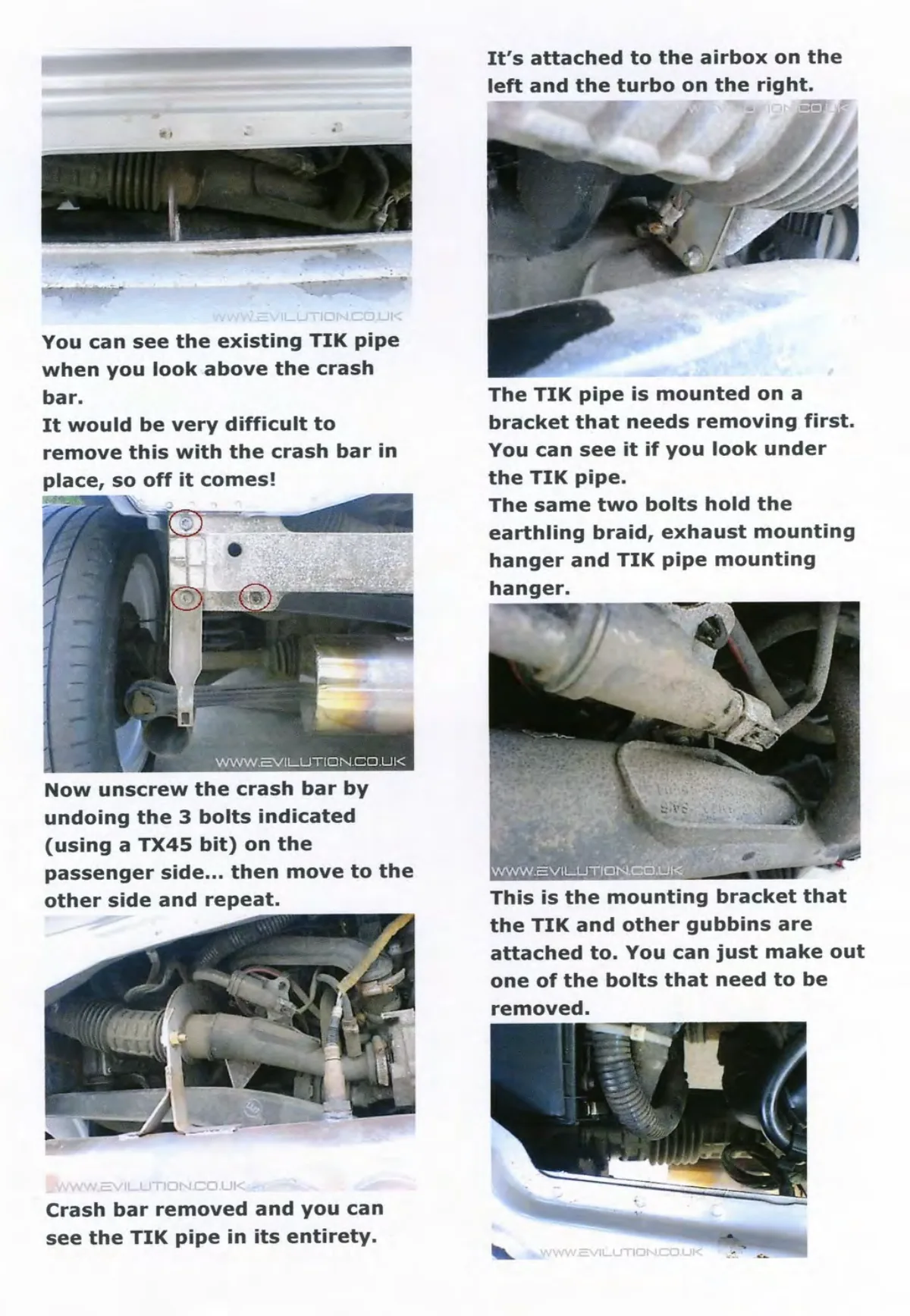

Service procedure photos showing TIK pipe location, crash bar bolts, and mounting bracket on Smart Fortwo undercarriage.
