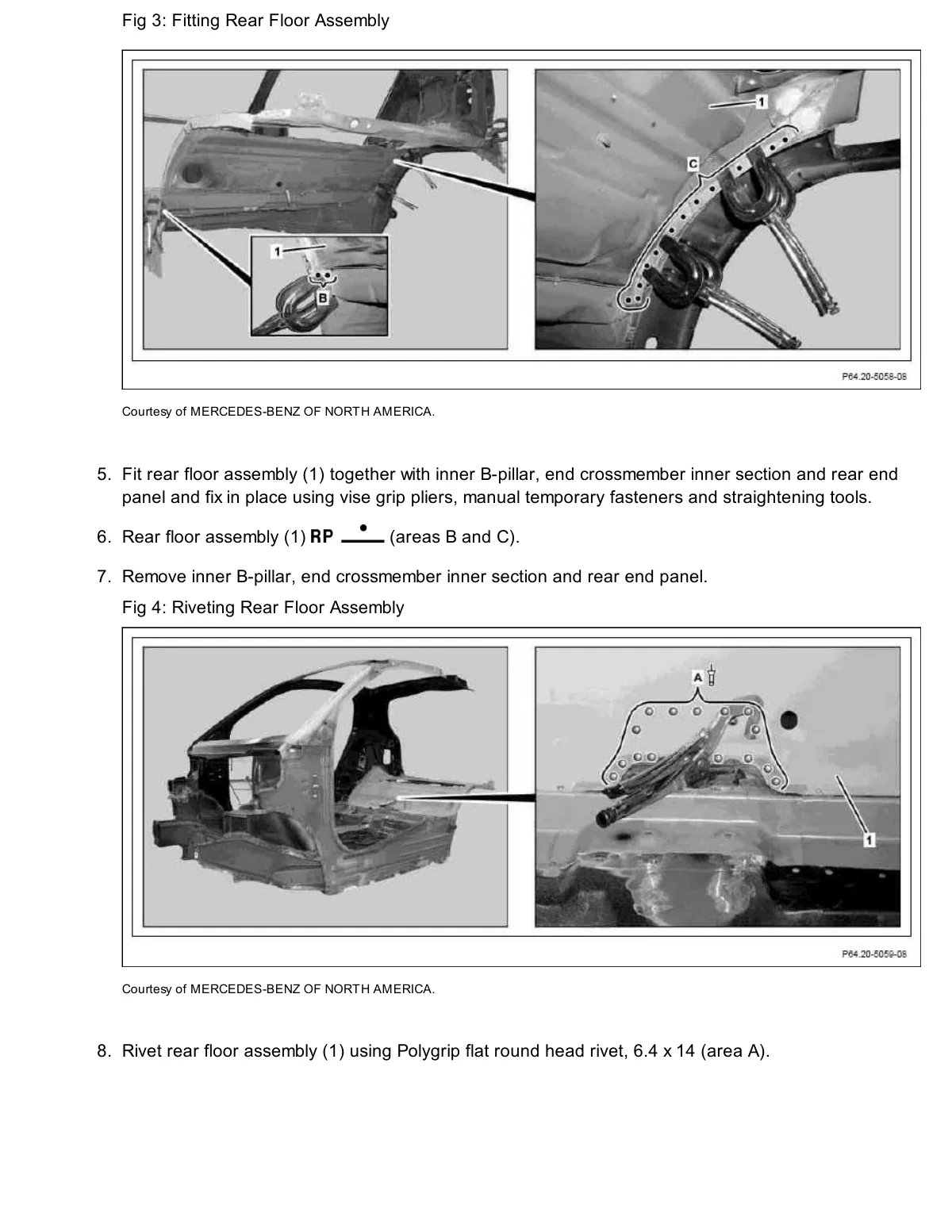

Rear floor assembly fitting and riveting procedure for Smart chassis 450/451/452/454 with callout locations and rivet specifications.

Two repair procedures showing rear floor assembly installation and riveting with numbered callouts and detail views.

View full-size image ↗

See all Body & Interior figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
