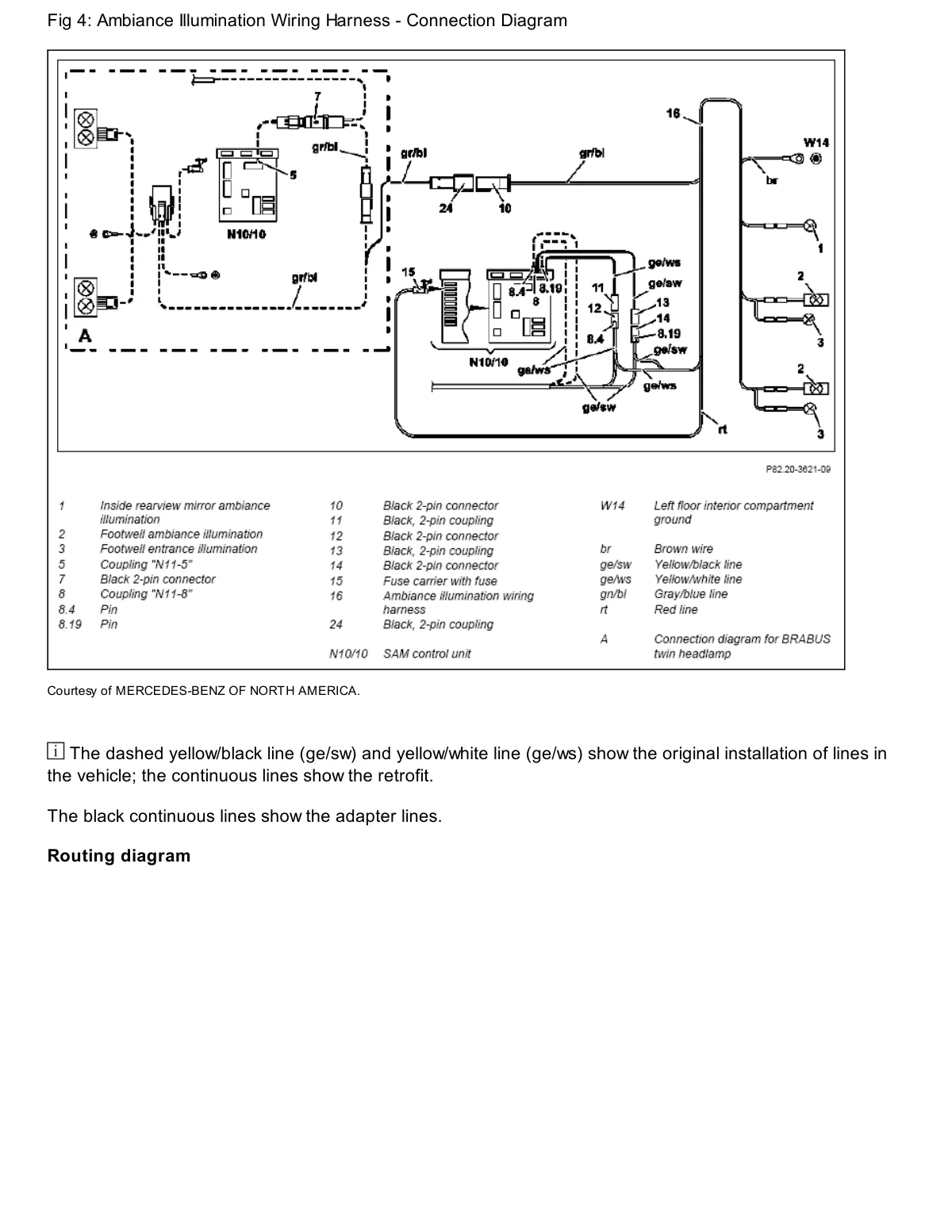

Ambiance illumination wiring harness connection diagram for rearview mirror and footwell lights with SAM control unit N10/10.

Wiring schematic showing ambiance lighting circuits, connectors, and SAM module connections.
