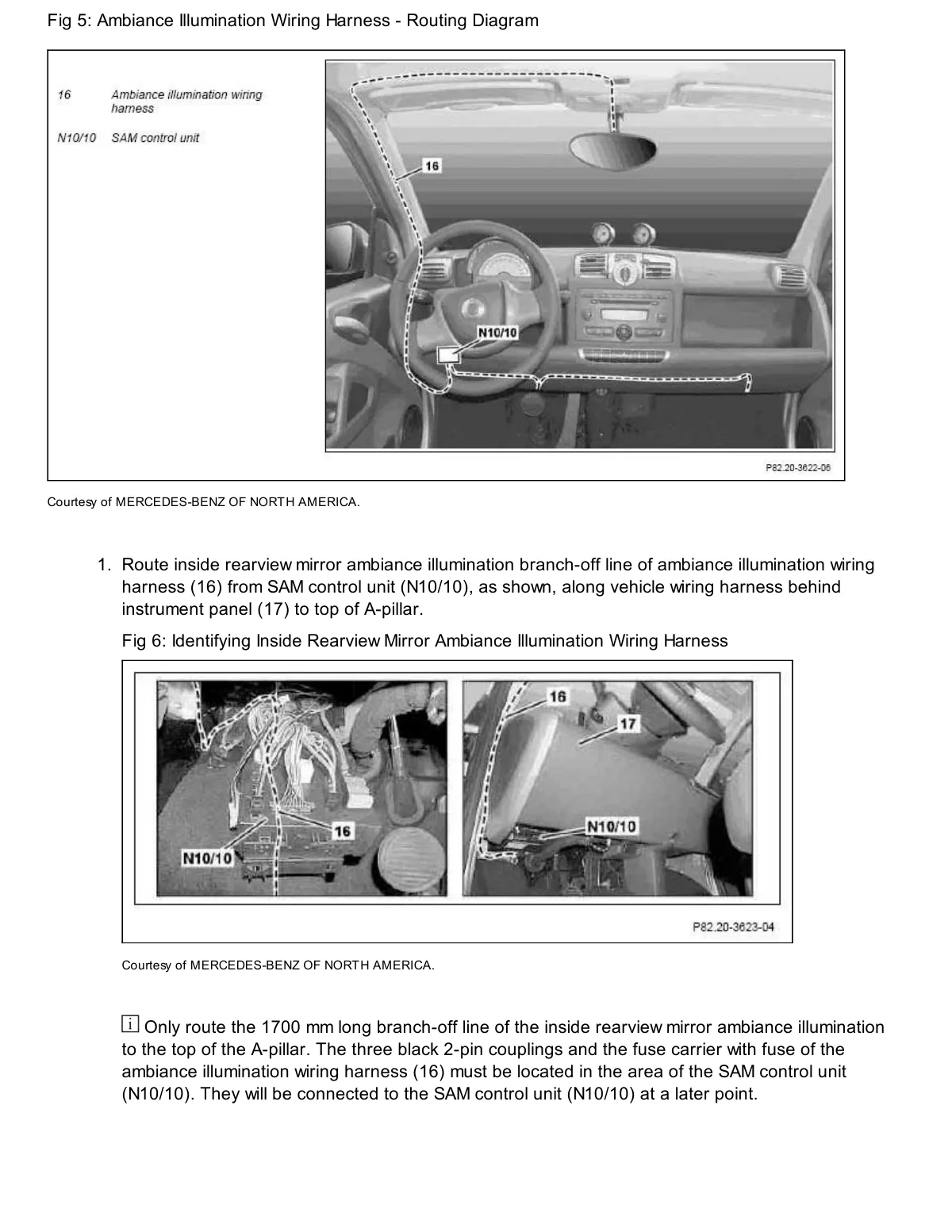

Ambiance illumination wiring harness routing diagram for Smart interior, SAM control unit N10/10 to rearview mirror branch-off line.

Wiring harness routing diagram showing ambiance illumination connections inside Smart vehicle interior with callout references.
