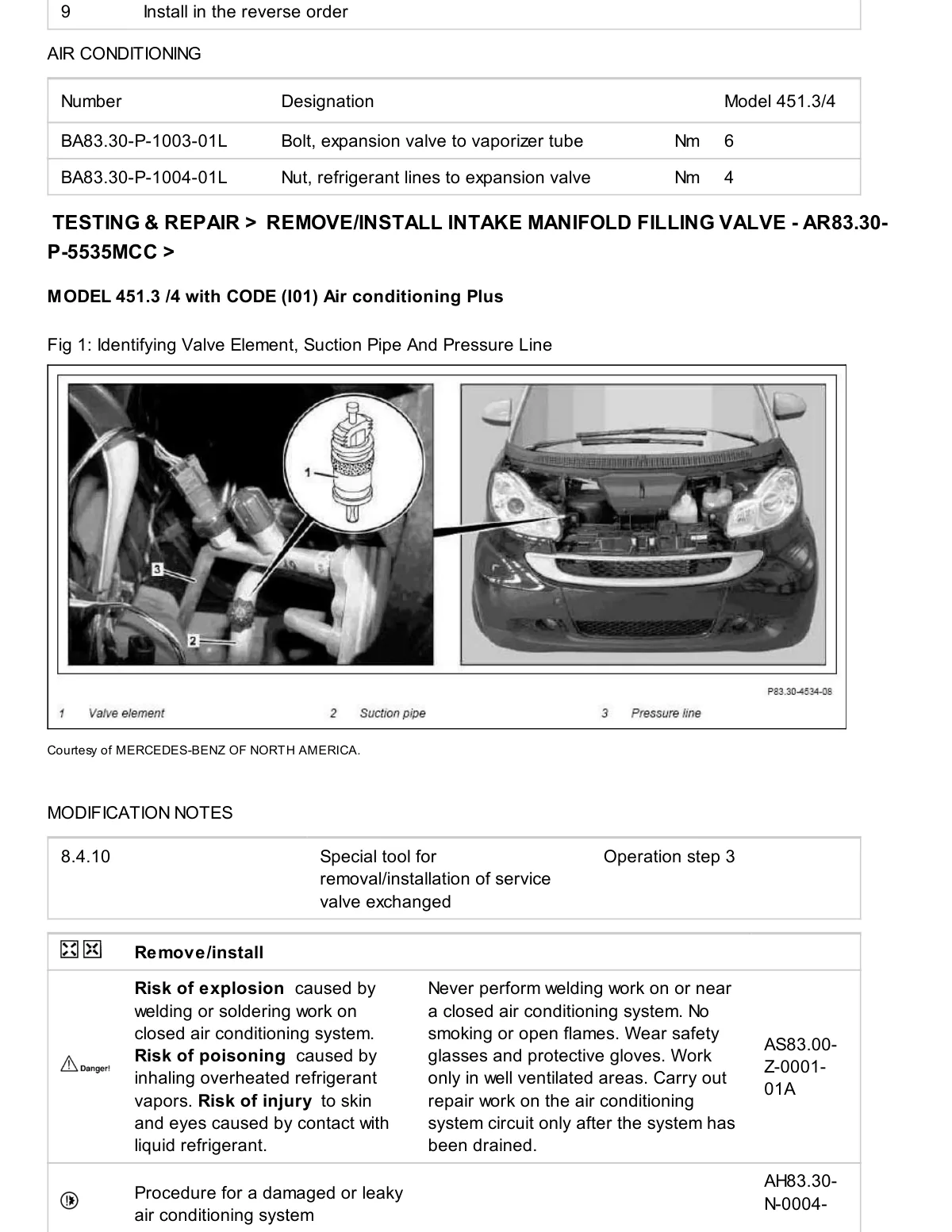

Air conditioning intake manifold filling valve components and location for model 451.3/4 with identification callouts.

Diagram showing AC valve element, suction pipe, and pressure line for Smart 451 model with front view locator.
