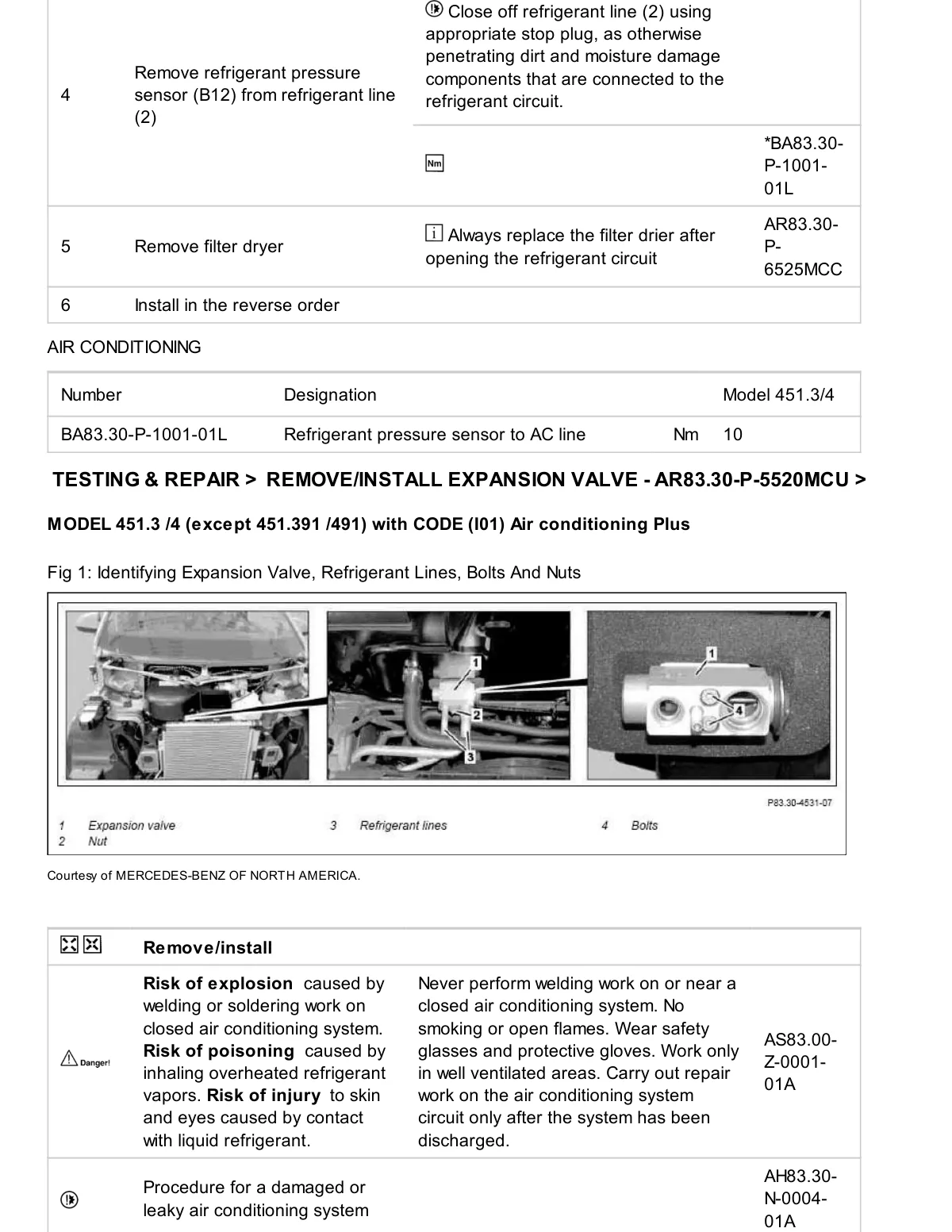

Air conditioning expansion valve removal/installation procedure for smart 451.3/4 with refrigerant pressure sensor and component locations.

Expansion valve diagram with refrigerant lines, bolts, and AC pressure sensor for smart 451.3/4 chassis.
