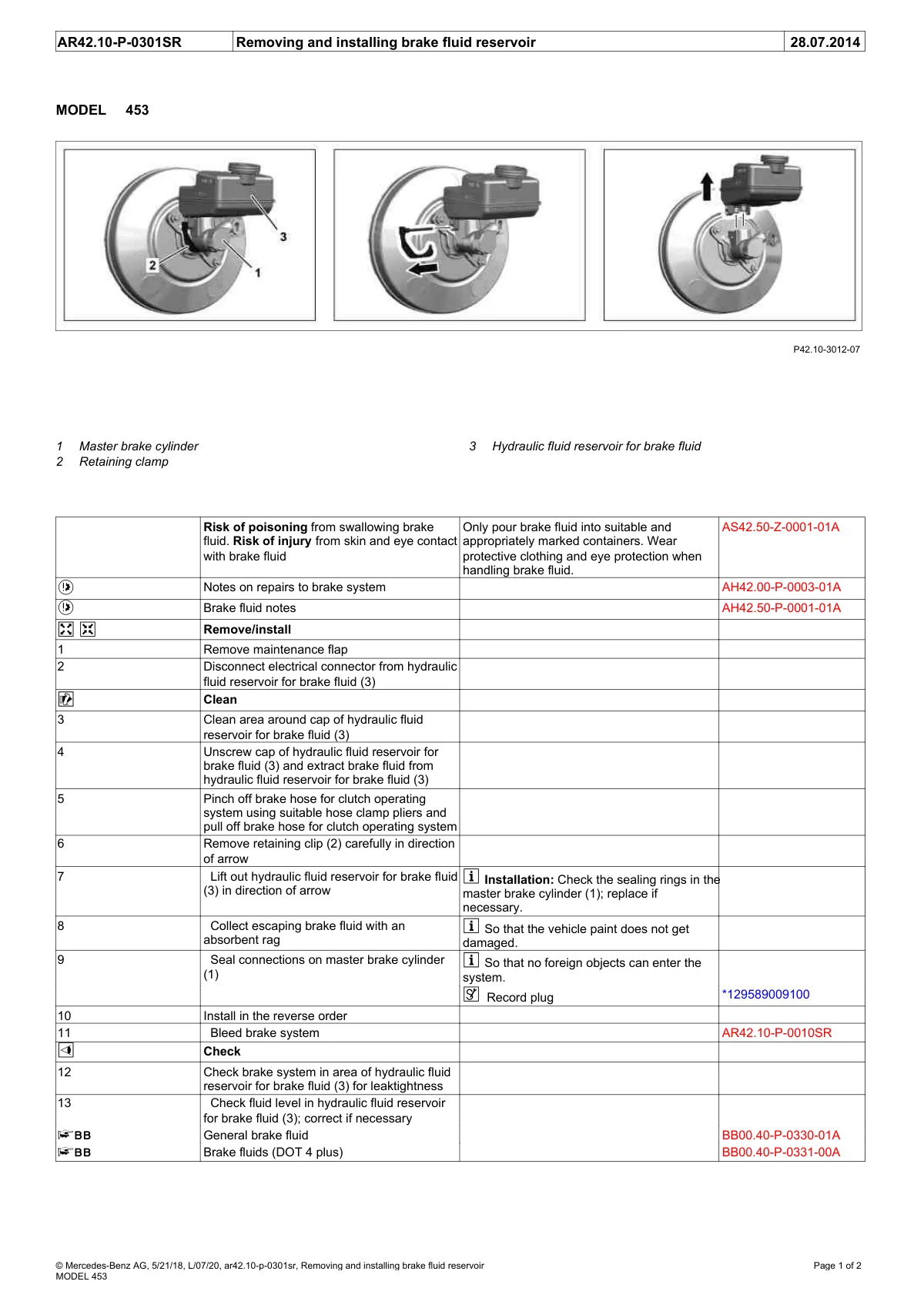

Model 453 brake fluid reservoir removal and installation procedure with master cylinder and retaining clamp callouts.

Three diagrams showing brake fluid reservoir removal steps on Smart 453 chassis with numbered component callouts.
