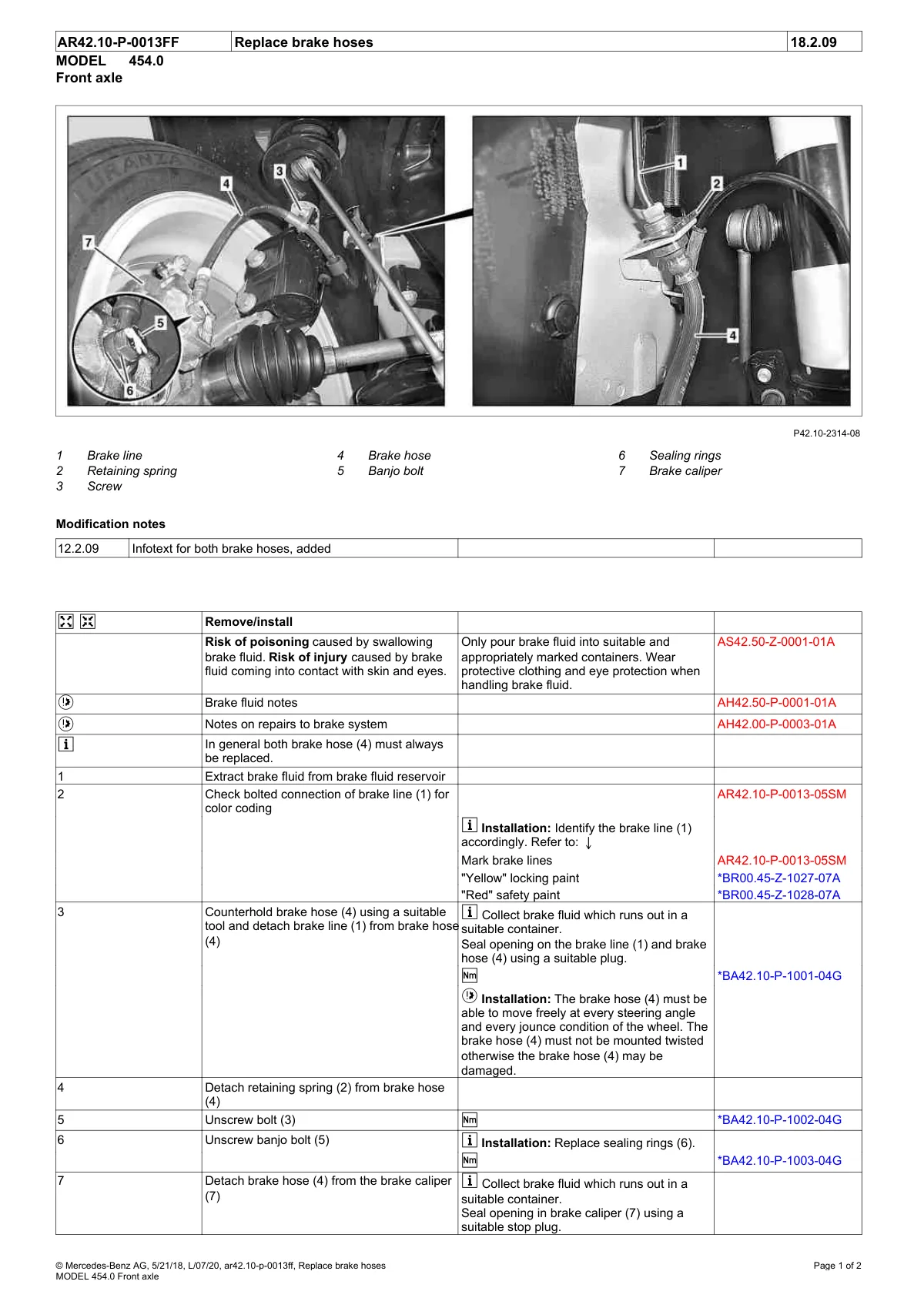

Front axle brake hose replacement procedure with seven labeled components on chassis 454.0.

Two photographs showing brake hose assemblies with numbered callouts 1-7 identifying brake line, retaining spring, screw, brake hose, banjo bolt, sealing rings, and brake caliper.
