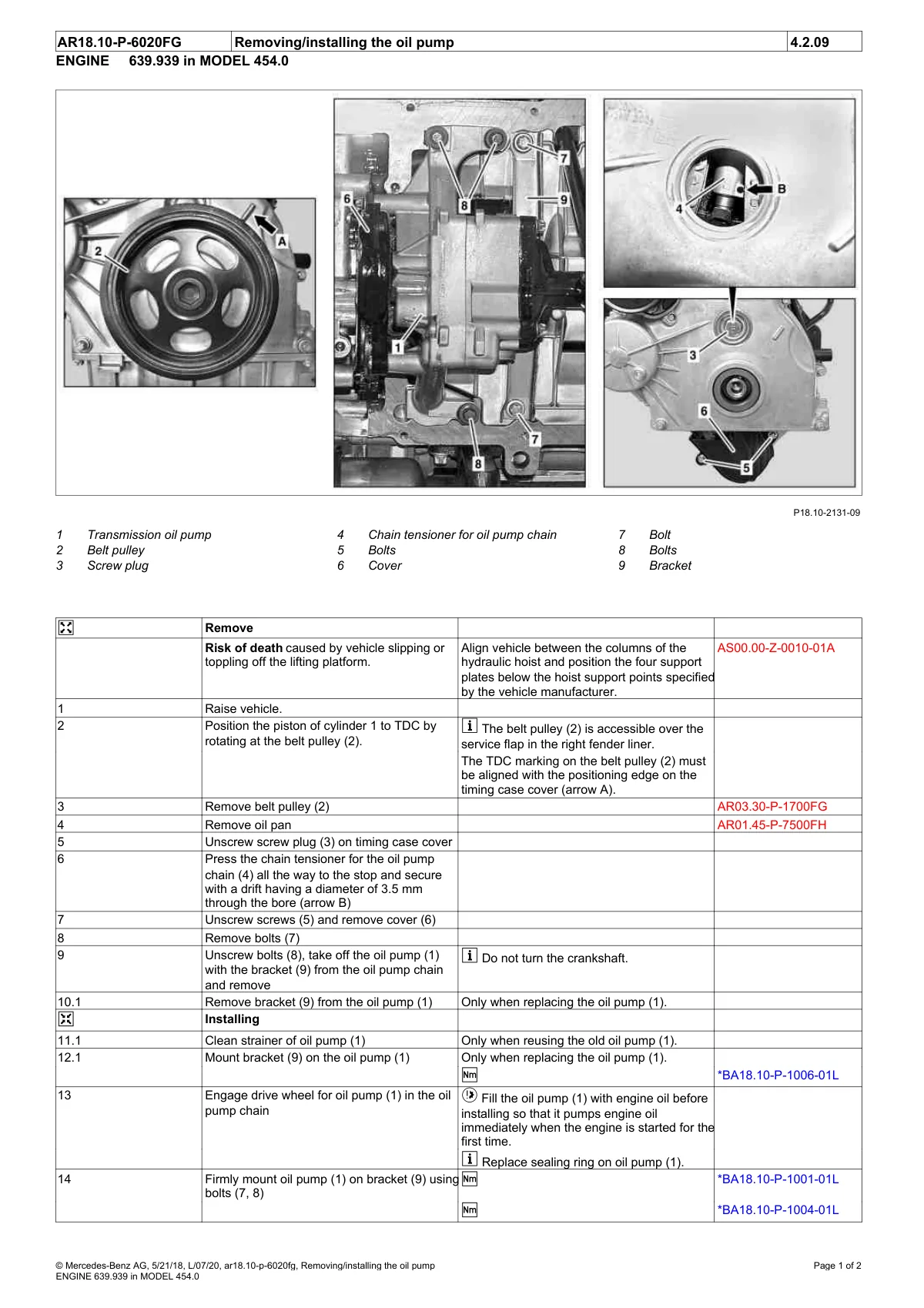

Oil pump removal and installation procedure for 454.0 engine, showing belt pulley, chain tensioner, and mounting components.

Exploded view and step-by-step diagram of transmission oil pump with nine numbered callout points on 454.0 engine.
