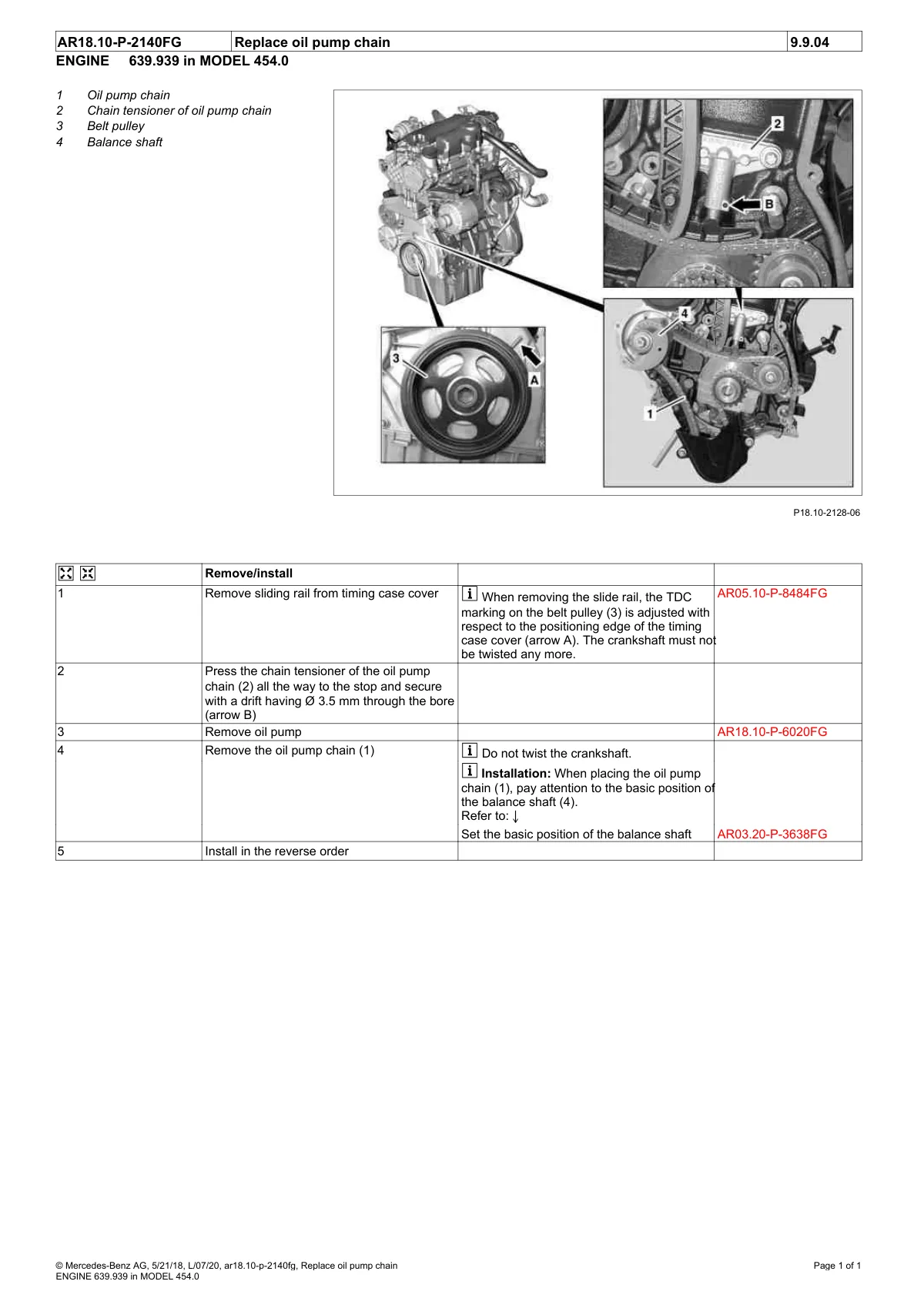

Oil pump chain replacement procedure for 454.0 engine, showing chain tensioner and balance shaft location with numbered callouts.

Engine diagram and service photos showing oil pump chain components and removal sequence for Smart 454 model.
