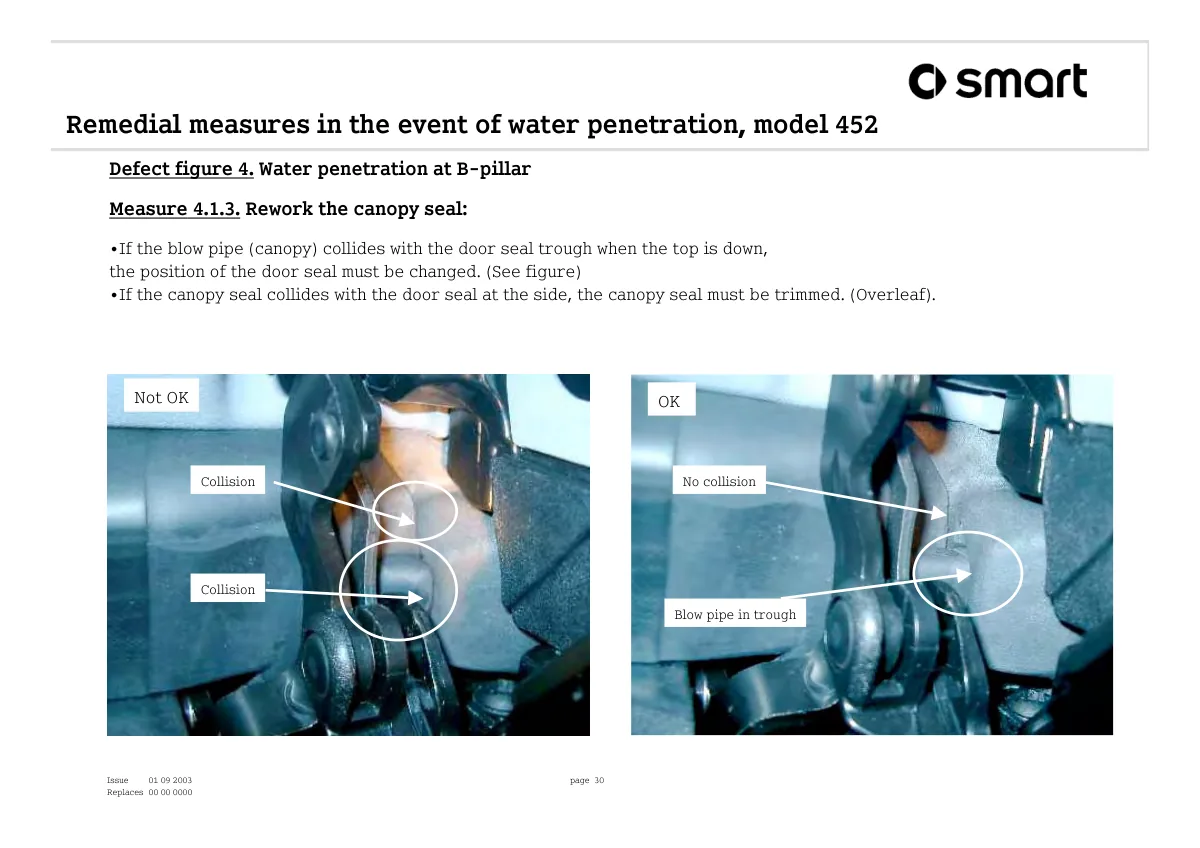

Model 452 B-pillar canopy seal rework procedure comparing incorrect collision position versus correct blow pipe alignment.

Two side-by-side photos of B-pillar showing canopy seal collision points marked versus correct no-collision position.
