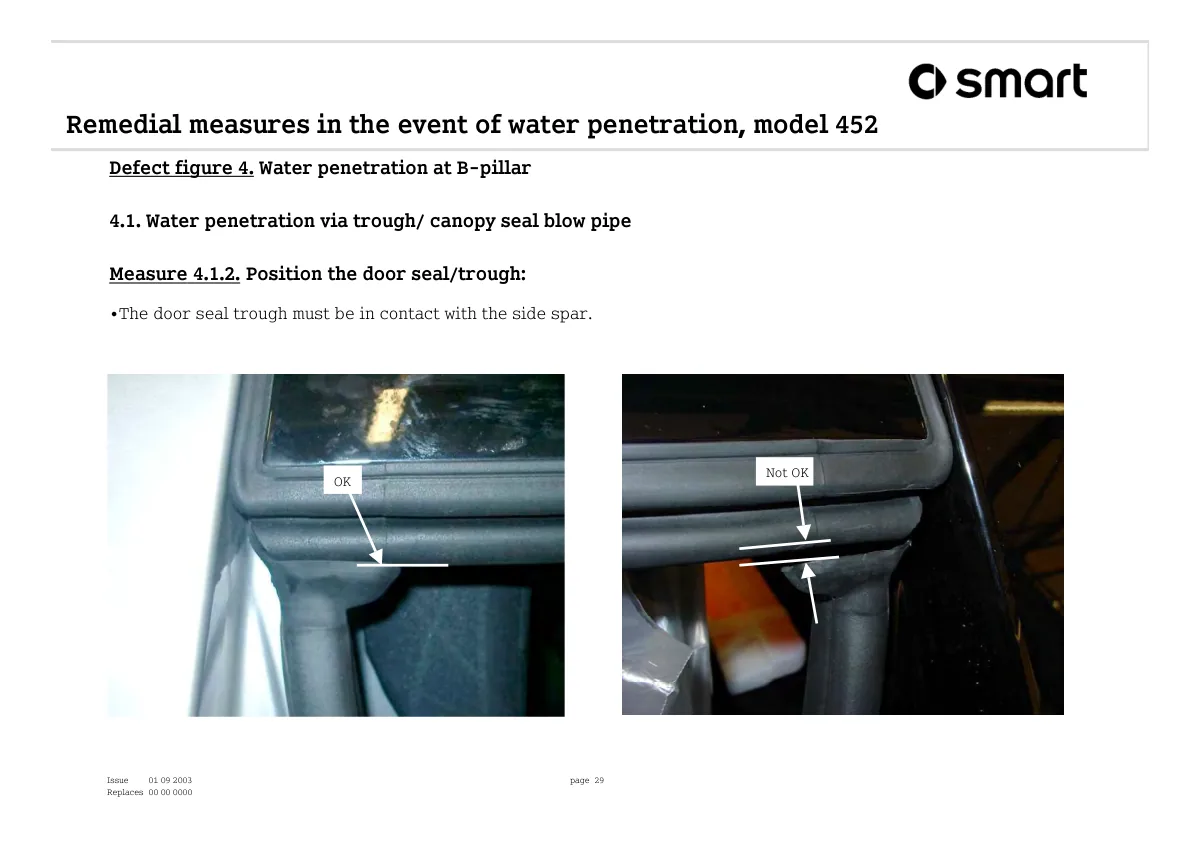

Model 452 door seal trough positioning at B-pillar; correct and incorrect water penetration remedial measures.

Two photos showing door seal trough contact with side spar, labeled OK and Not OK.
